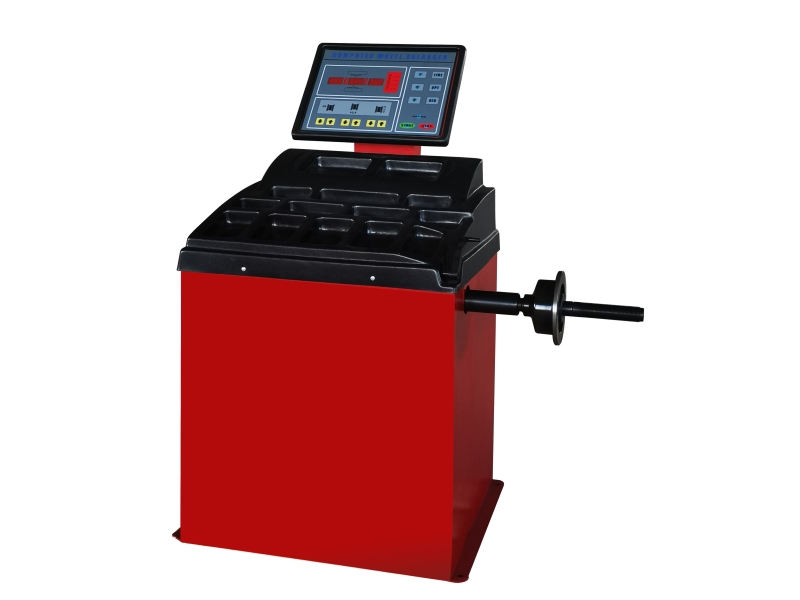

TAB-W100

Compact Line Car Wheel Balancer

Features

  • LED display separate show the wheel inside and outside balance numeric.

  • Self calibrating and self diagnosis programs.

  • Static and standard dynamic balancing and special rim balancing.

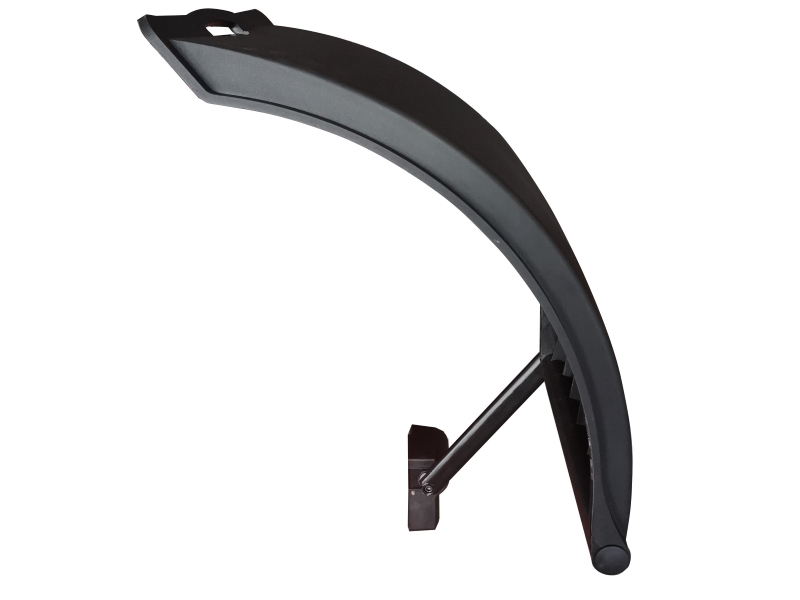

  • It is safe and reliable with wheel protection cover.

  • Unbalance value displayed accurately,and the position to add the balance weight is in dicated definitely.


PRODUCT SPECIFICATIONS

  • Model No. TAB-W100
  • Power Supply 220V/380V 50/60Hz
  • Motor Power 0.25KW
  • Rim Diameter 12-24 inches
  • Rim Width 1.5-20 inches/ 40-510mm
  • Max. Wheel Diameter 960mm
  • Max. Wheel Weight 70kg
  • Balancing precision 1g
  • Cycle Time 8s
  • Noise <70dB
  • Net Weight 90kgs
  • Gross Weight 110kgs
  • Package Size 1100x800x1150mm
