TAB-W683

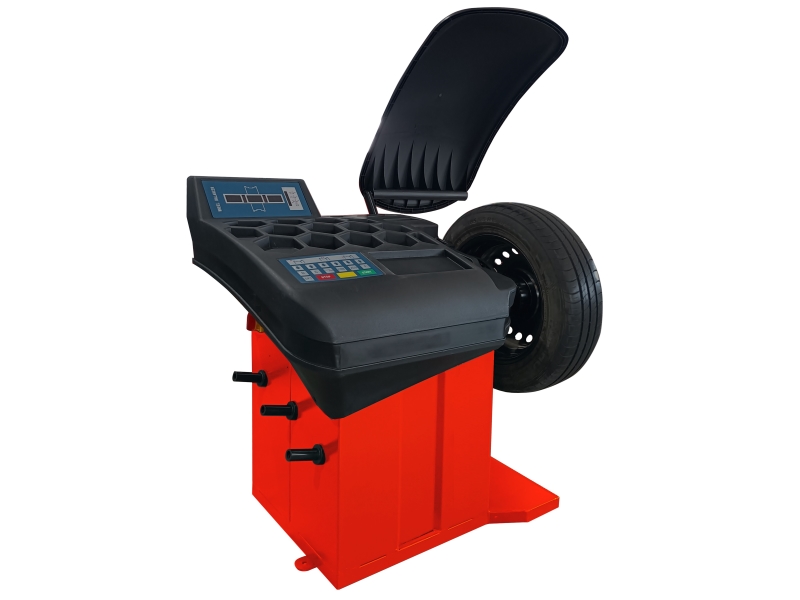

Heavy Duty Car Wheel Balancer

Features

  • The machine adopts scientific support structure, stable operation without deformation.

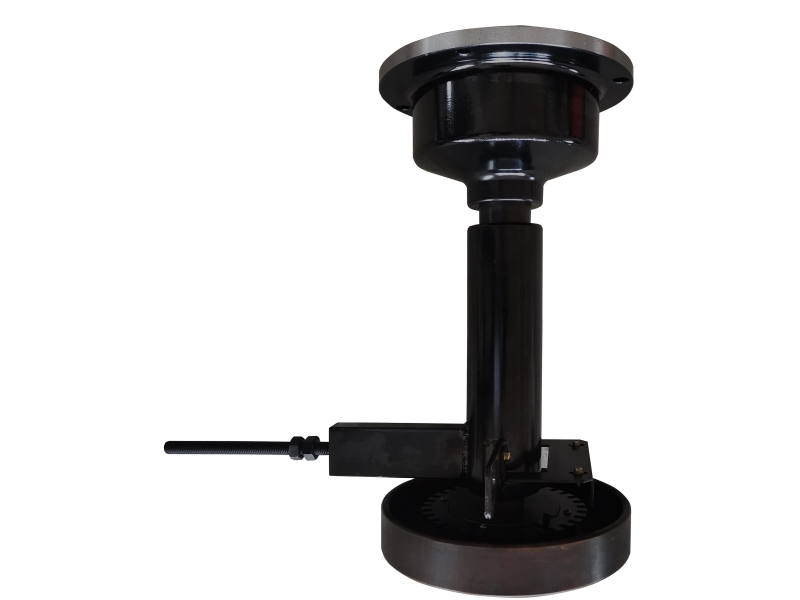

  • Military quality mechanical spindle, high precision, repeated measurement without beating.

  • High integrated computer board, stable quality, high calculation accuracy.

  • The computer board with self-calibration function and equipment failure function, with four balance ways, to meet all kinds of tires.

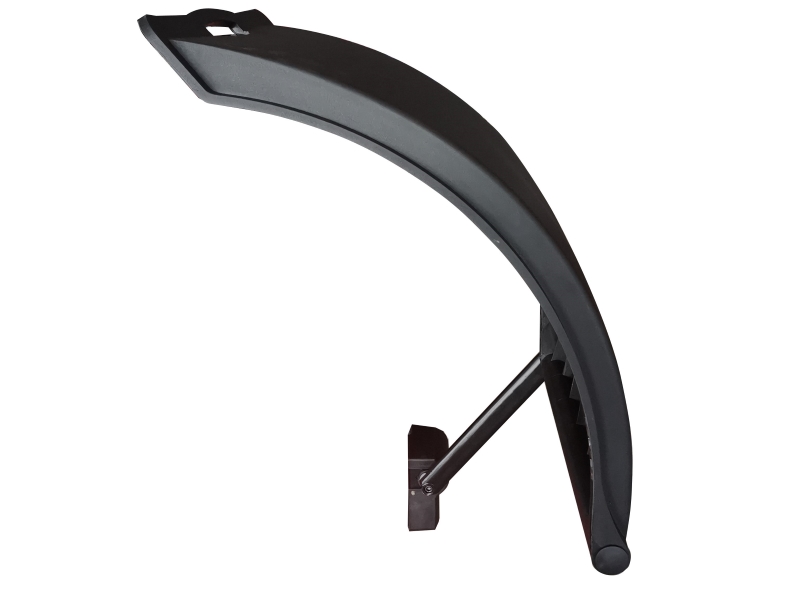

  • High quality tire protective cover, prevent sand splashing, protective cover with automatic start and stop function.

  • Red line outside line positioning function, sticky balance block position more accurate.

  • Positioning brake function, stick the balance block when the tire does not move.

  • The use of four-stage motor start, run, brake, more stable, high measurement accuracy, balance flat, wide, large tires have obvious advantages.


PRODUCT SPECIFICATIONS

  • Model No. TAB-W683
  • Power Supply 220V/380V 50/60Hz
  • Motor Power 0.25KW
  • Rim Diameter 12-26 inches
  • Rim Width 1.5-20 inches/ 40-510mm
  • Max. Wheel Diameter 960mm
  • Max. Wheel Weight 70kg
  • Balancing precision 1g
  • Cycle Time 8s
  • Noise <70dB
  • Net Weight 90kgs
  • Gross Weight 110kgs
  • Package Size 1030x860x1160mm
