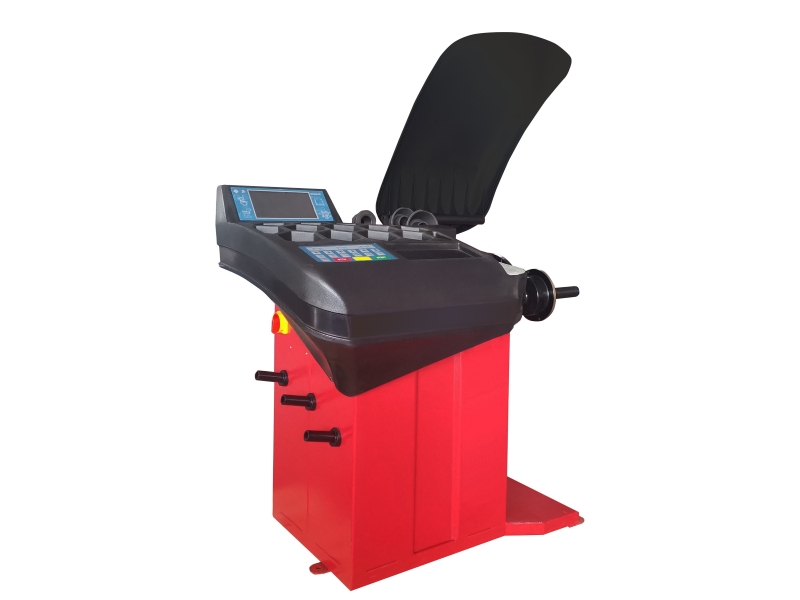

TAB-W688

LCD Display, Maglev Drive Car Wheel Balancer

Features

  • The case adopts scientific support structure, which can operate stably without deformation under force.

  • The machine is equipped with LCD display panel, easy to operate.

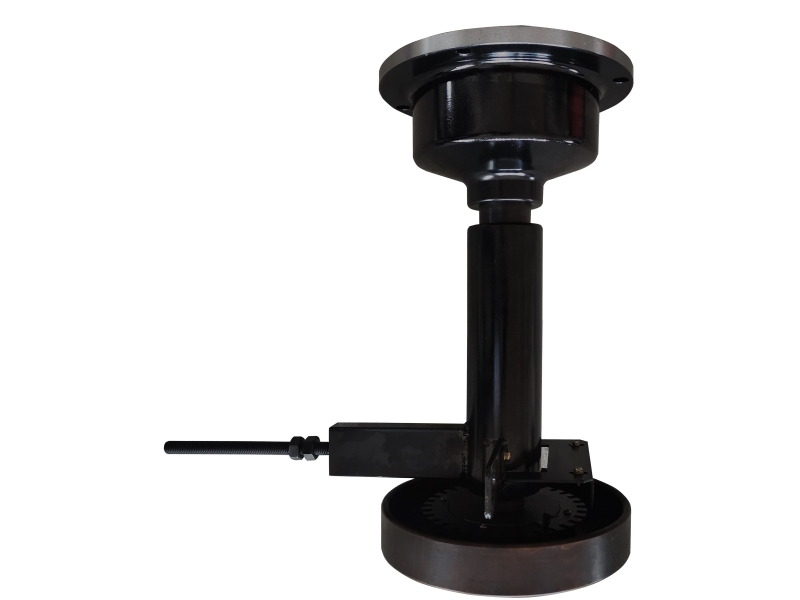

  • Military quality maglev drive integrated 40 mm spindle, high precision, less error.

  • High integrated computer board, stable quality, high calculation accuracy.

  • Computer board with self-calibration function and equipment failure function, built-in a variety of balance, static, dynamic, meet all kinds of tires.

  • Up and down two infrared positioning function, at the same time to meet four kinds of tire balance mode, sticky balance block position more accurate.

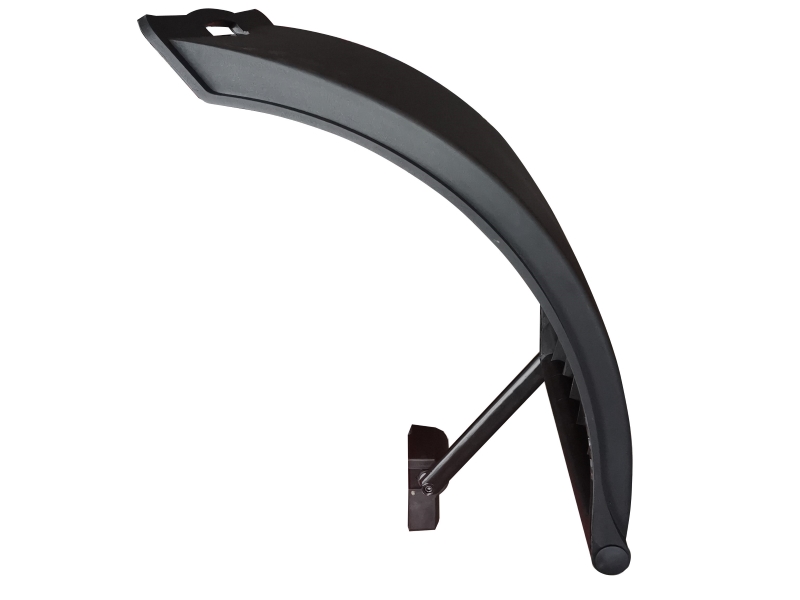

  • Thickened tire cover to prevent sand splashing, cover with automatic start and stop function.

  • Automatic unbalance point, automatic positioning brake function, the tire will not move when sticking the balance block, more convenient to use.

PRODUCT SPECIFICATIONS

  • Model No. TAB-W688
  • Power Supply 220V/380V 50/60Hz
  • Motor Power 0.25KW
  • Rim Diameter 12-26 inches
  • Rim Width 1.5-20 inches (40-510mm)
  • Max. Wheel Diameter 960mm
  • Max. Wheel Weight 70kg
  • Balancing precision 1g
  • Cycle Time 8s
  • Noise <70dB
  • Net Weight 90kgs
  • Gross Weight 110kgs
  • Package Size 1030x860x1160mm
