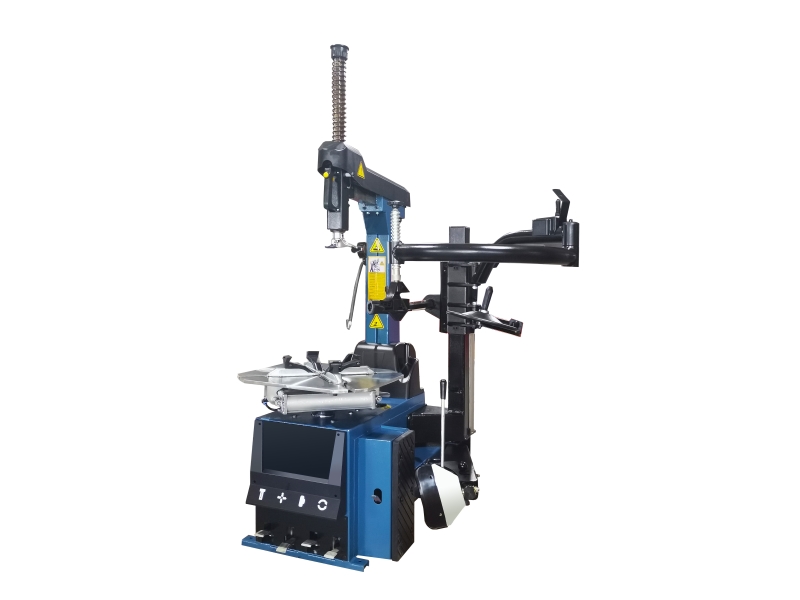

TAB-T868

Tilting Column, Heavy Duty Tire Changer with Right Help Arm

Features

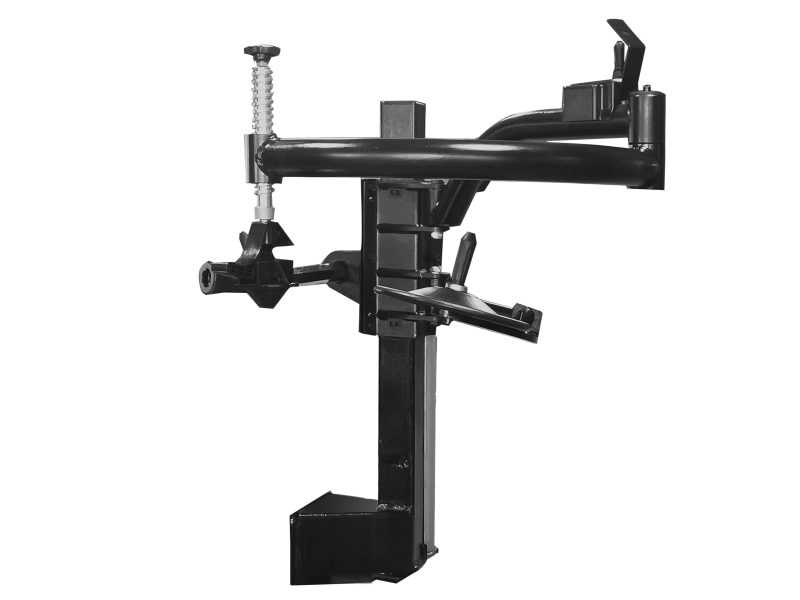

  • Reinforced help arm, more effective and labor-saving help to disassemble hard wall tires, explosion-proof tires.

  • Column double bending process, high strength, using 5mm thick steel column material.

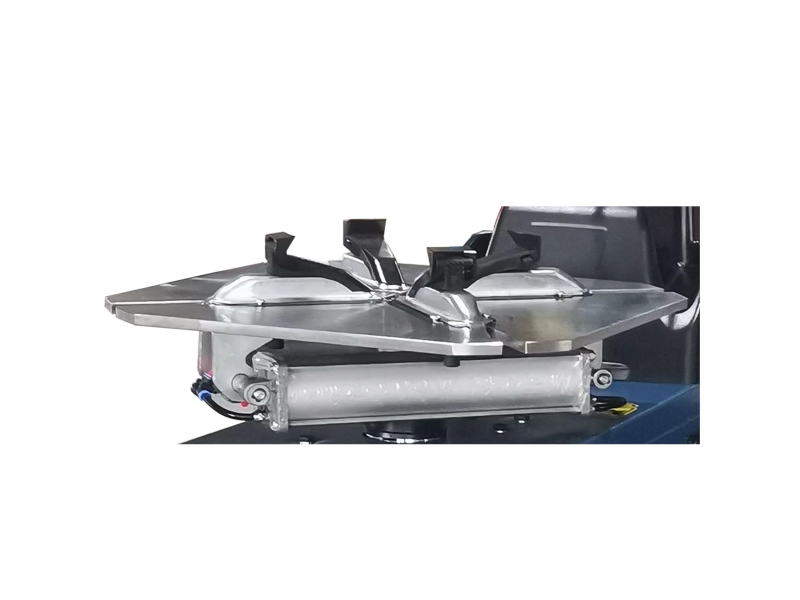

  • 26 inch extra disc, suitable for wider and larger tires.

  • The body of the machine is thickened and the internal structure is strengthened to make the machine more stable when in use.

  • Pneumatic control column back function, automatic positioning, pneumatic locking.

  • Tire scraper adjustable function, standard ø 200 cylinder, suitable for different hardwall tires, explosion-proof tires.


PRODUCT SPECIFICATIONS

  • Model No. TAB-T868
  • Power Supply 220V/380V 50/60Hz
  • Motor Power 0.75KW/1.1KW
  • Outside clamping 11-24”/279-610mm
  • Inside clamping 12-26”/305-660mm
  • Max.wheel diameter 41”/1100mm
  • Max.wheel width 16”/420mm
  • Bead Break Force 2800Kgf
  • Operating pressure 8-10bar
  • Noise Less than 70db
  • Net/Cross weight 300 / 320kgs
  • Packing size 1 1000x800x950mm
  • Packing size 2 1280x380x320mm
