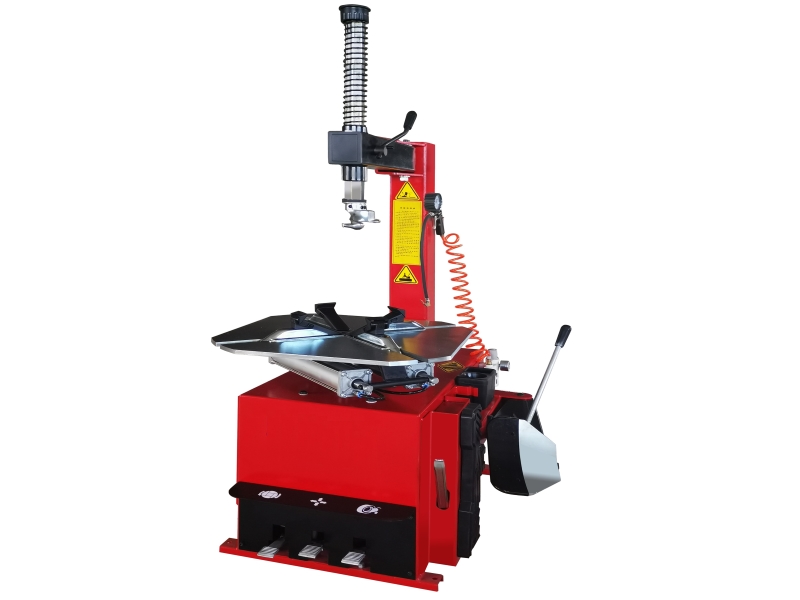

TAB-T508

Compact Line Tire Changer

Features

  • The enlarged 26inch turetable is suitable for mounting and demounting larger and wider tires.

  • Left help arm system makes the wider tires mounting and demounting operation much swift and labor saving.

  • Scientific and stable design to make sure the wheels and tires free of damage during operation.


PRODUCT SPECIFICATIONS

  • Model No. TAB-T508
  • Power Supply 220V/380V 50/60HZ
  • Motor Power 0.75KW/1.1KW
  • Outside clamping 11-24”/279-610mm
  • Inside clamping 12-26”/305-660mm
  • Max.wheel diameter 41”/1100mm
  • Max.wheel width 16”/420mm
  • Bead Break Force 2500Kgf
  • Operating pressure 8-10bar
  • Noise Less than 70db
  • Net/Cross weight 190 / 200kgs
  • Packing size 1000x800x950mm
