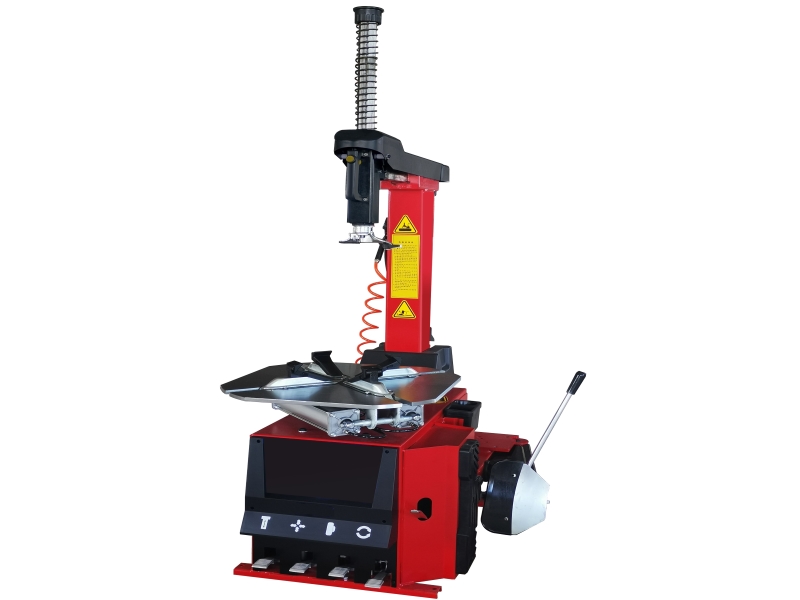

TAB-T509

Pneumatically Operated Tilting Column

Features

  • Pneumatically operated tilting column.

  • Capable of handling stiff,wide and low-profile tire.

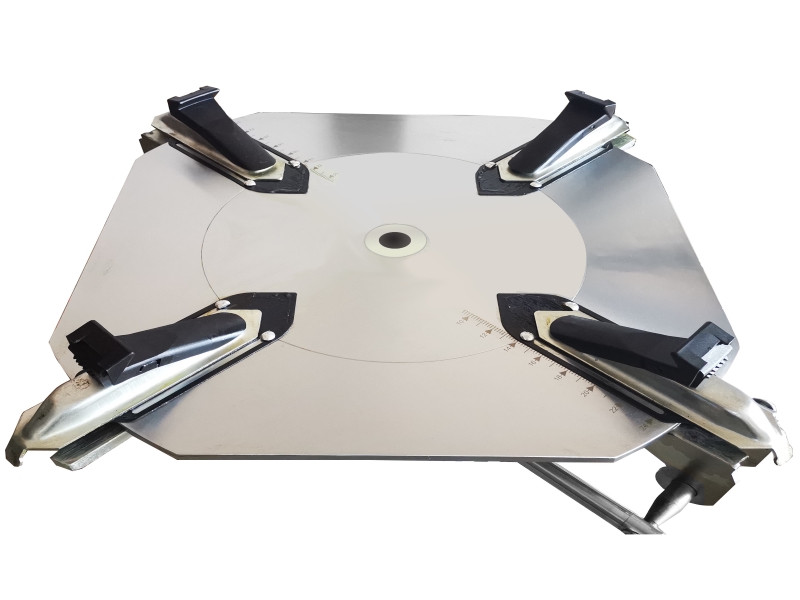

  • The clamping jaws and mounting ,demounting head ar mad of high quality alloy steel,and scientific structural design protects steel rim from and damage during operation.


PRODUCT SPECIFICATIONS

  • Model No. TAB-T509
  • Power Supply 220V/380V 50/60HZ

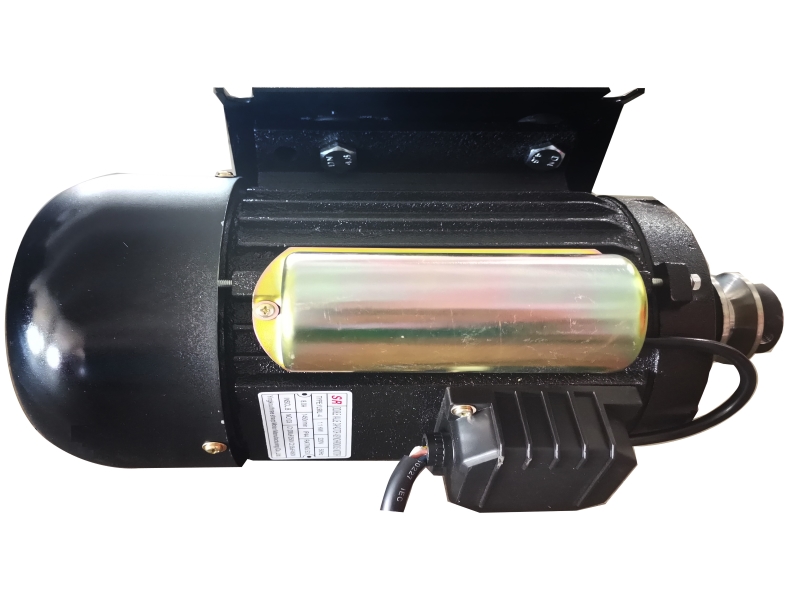

  • Motor Power 0.75KW/1.1KW
  • Outside clamping 11-24”/279-610mm
  • Inside clamping 12-26”/305-660mm
  • Max.wheel diameter 41”/1100mm
  • Max.wheel width 16”/420mm
  • Bead Break Force 2500Kgf
  • Operating pressure 8-10bar
  • Noise Less than 70db
  • Net/Cross weight 230 / 240kgs
  • Packing size 1000x800x950mm
