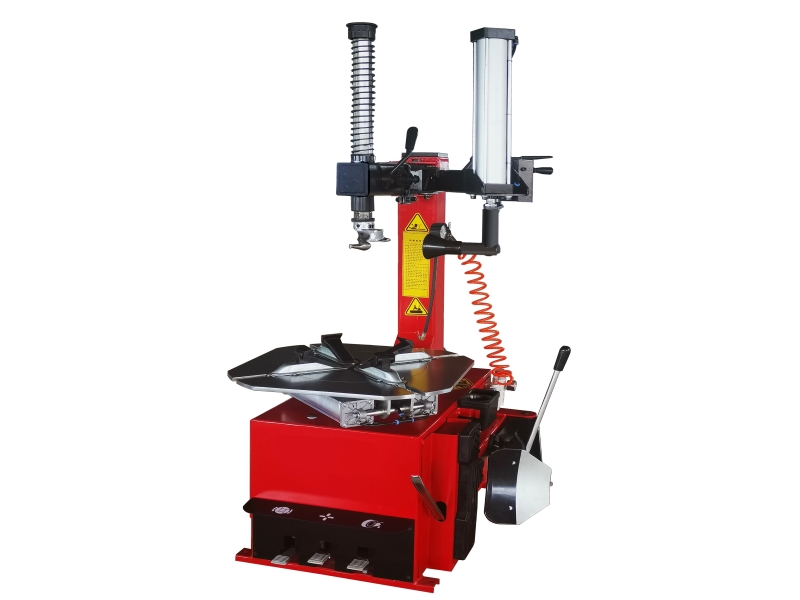

TAB-T516

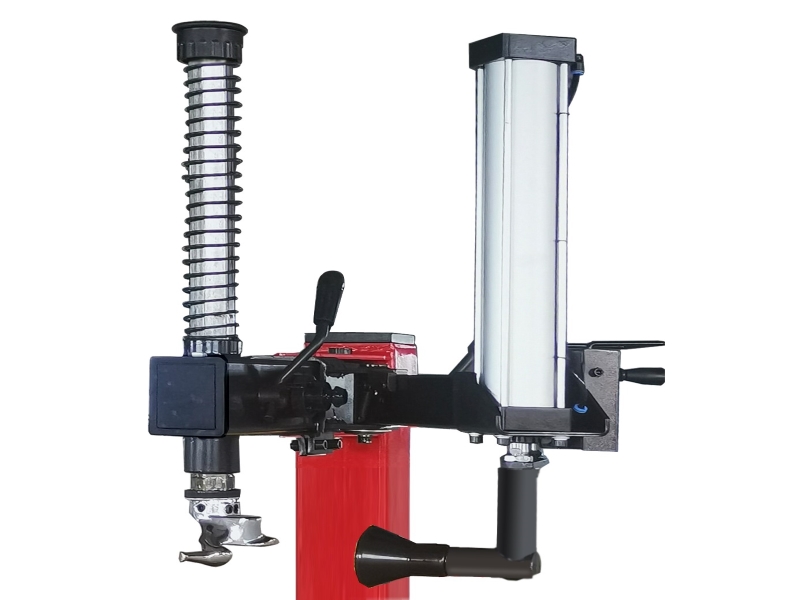

Right Pneumatic Cylinder Help Arm

Features

  • Pneumatic controlled tyre pressing device can be freely lifted and located at any position.

  • Tyre pressing roller of right help arm always protects tyre and rim.

  • Multi-function help arm has central positioning fucntion which can make wheel and turntable homocentric.


PRODUCT SPECIFICATIONS

  • Model No. TAB-T516
  • Power Supply 220V/380V 50/60HZ

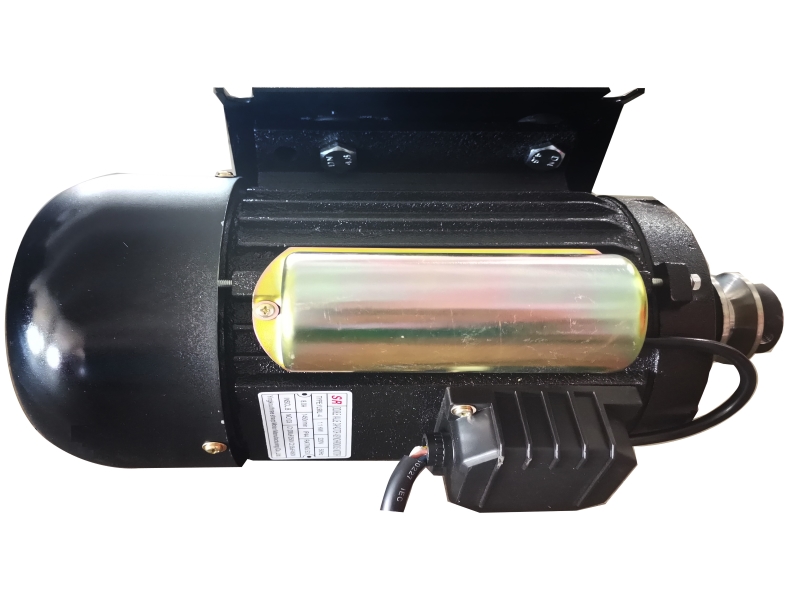

  • Motor Power 0.75KW/1.1KW

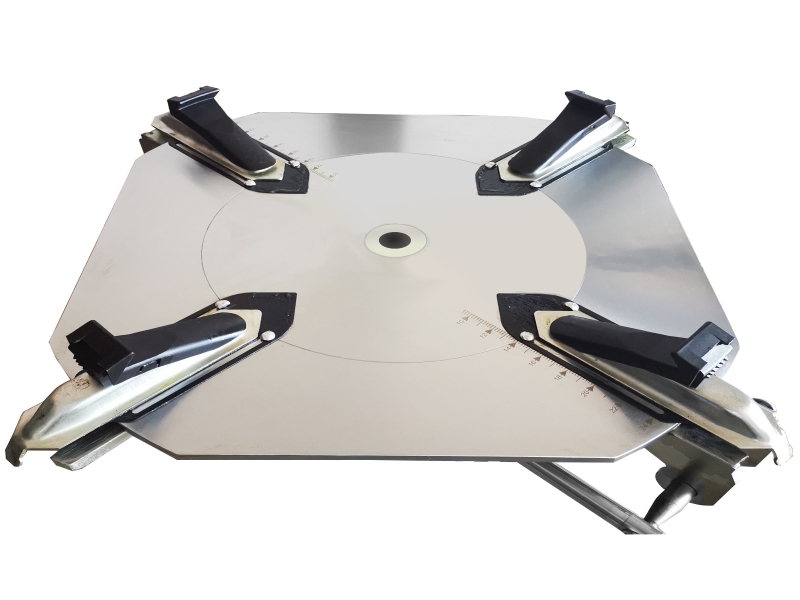

  • Outside clamping 11-24”/279-610mm
  • Inside clamping 12-26”/305-660mm
  • Max.wheel diameter 41”/1100mm
  • Max.wheel width 16”/420mm
  • Bead Break Force 2500Kgf
  • Operating pressure 8-10bar
  • Noise Less than 70db
  • Net/Cross weight 200 / 220kgs
  • Packing size 1000x800x950mm
