TAB-T526

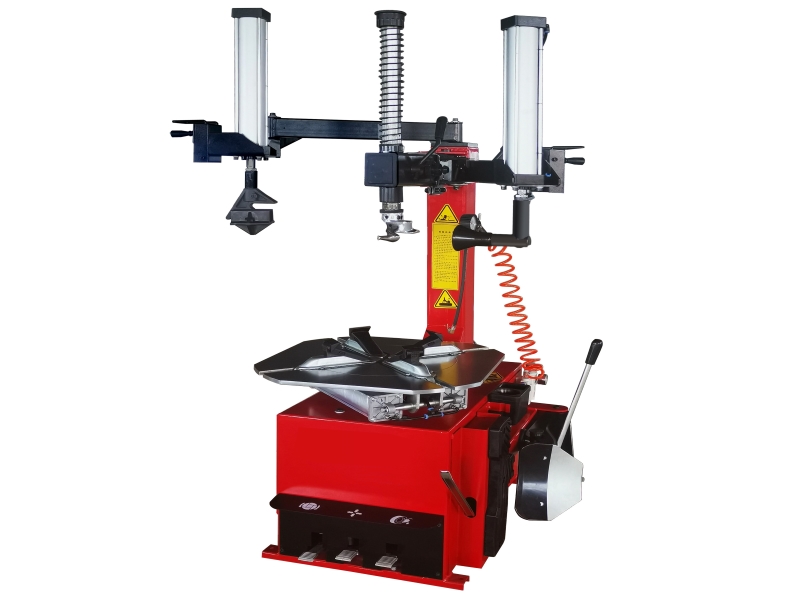

Multi-functional Tire Changer

Features

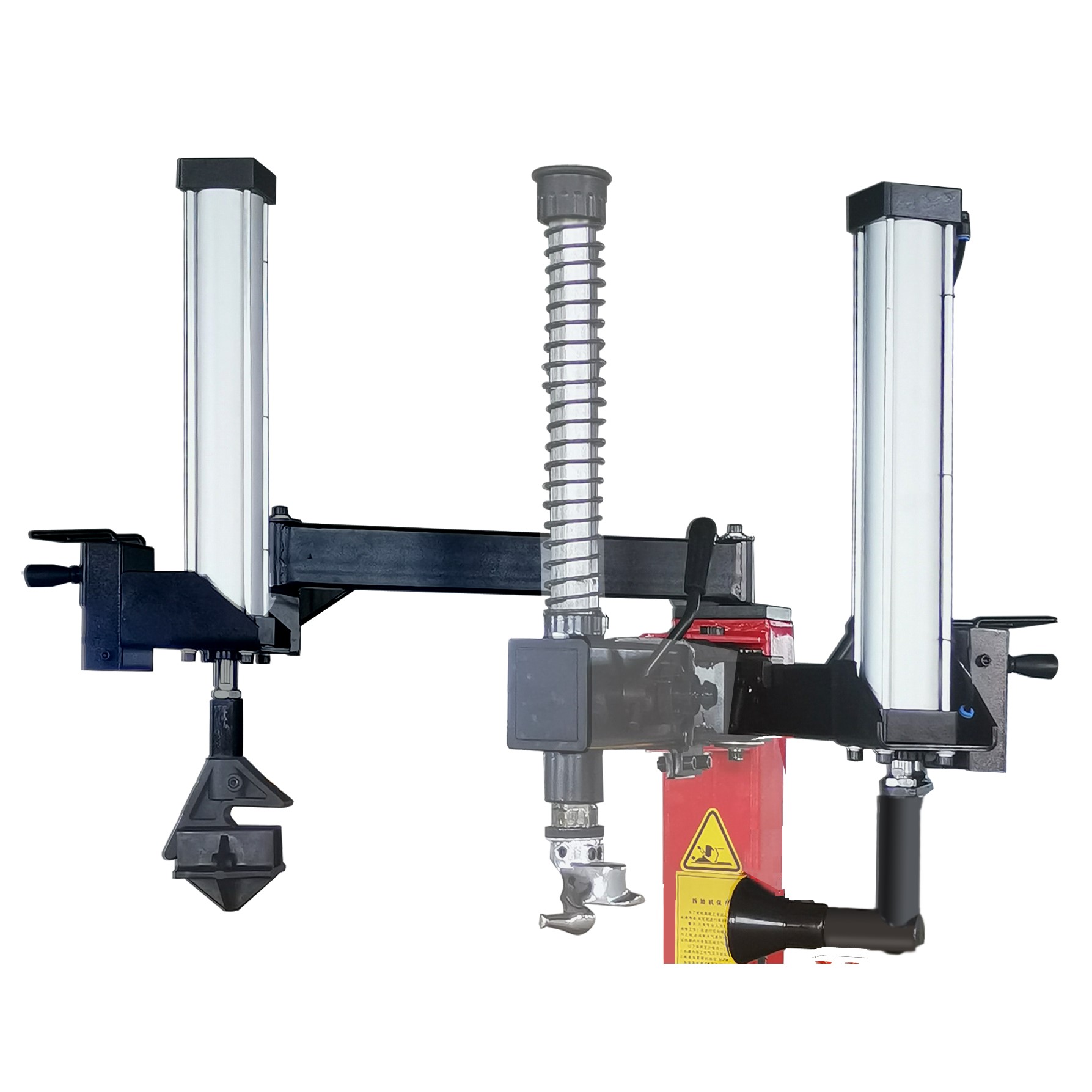

  • Higher and longer right/left help arms system extends working coverage.

  • Pneumatic controlled tyre pressing device can be freely lifted and located at any position.

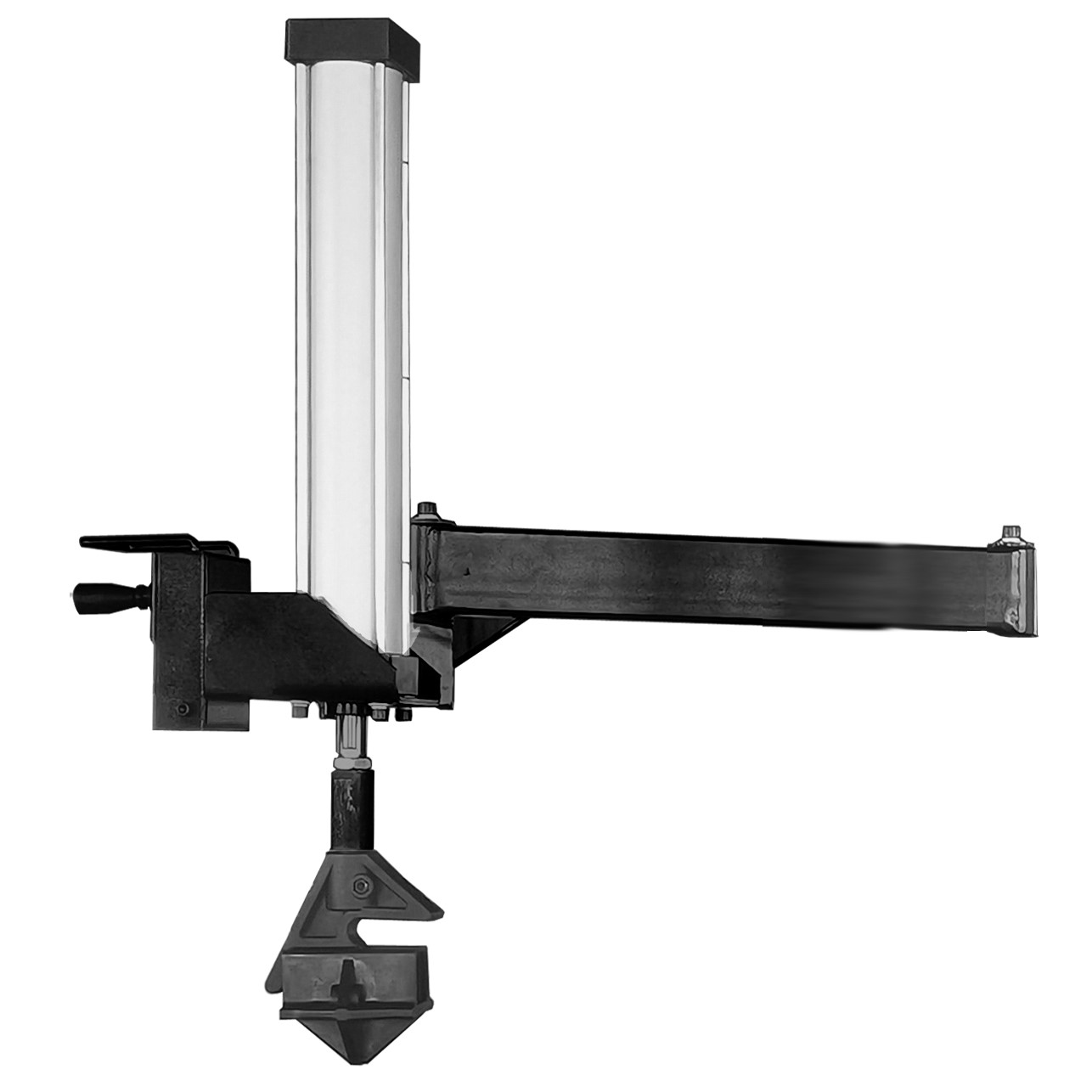

  • Tyre pressing roller of right help arm always protects tyre and rim.

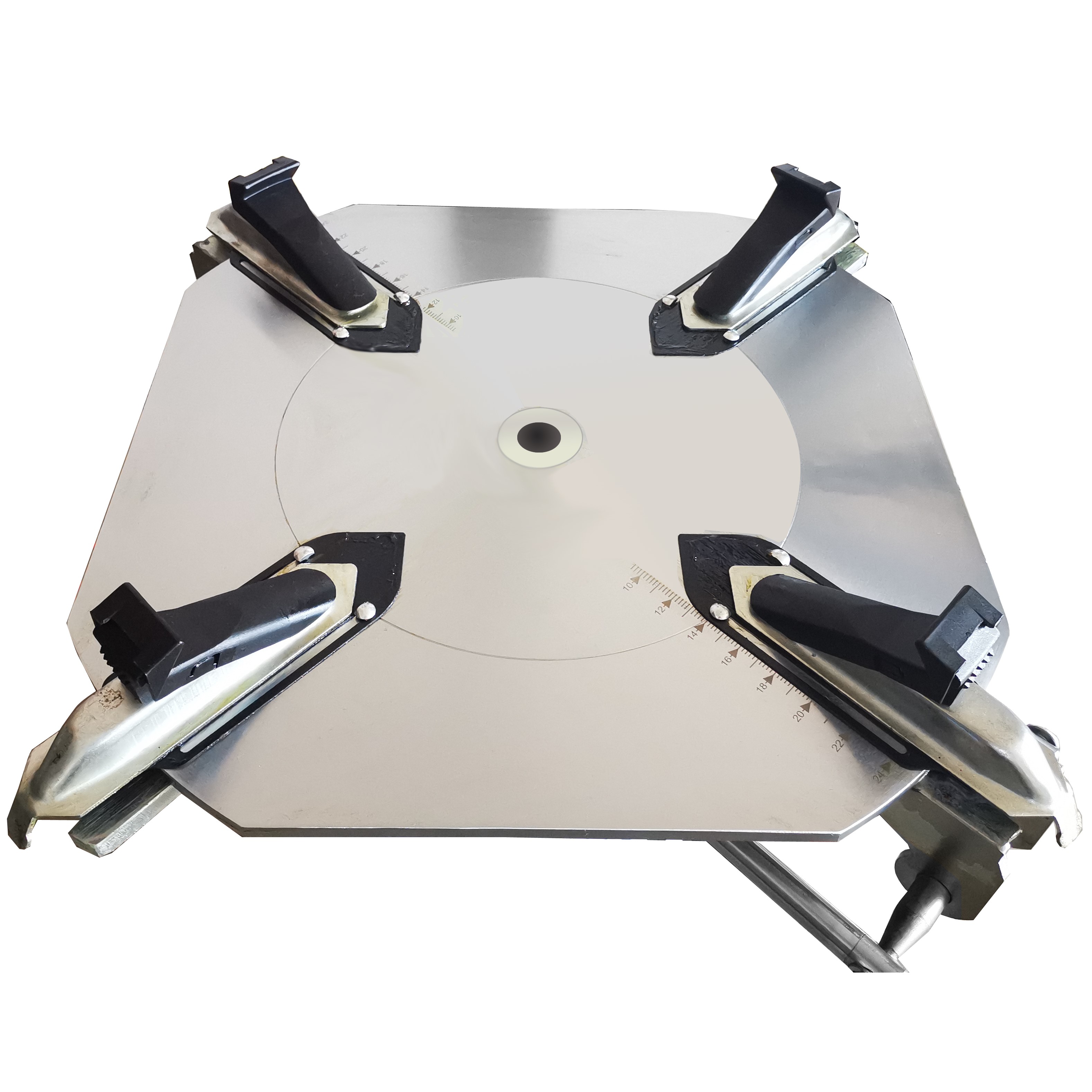

  • Multi-function help arm has central positioning fucntion which can make wheel and turntable homocentric.

  • Motorcycle adapter is optional.


PRODUCT SPECIFICATIONS

  • Model No. TAB-T526
  • Power Supply 220V/380V 50/60HZ
  • Motor Power 0.75KW/1.1KW
  • Outside clamping 11-24”/279-610mm
  • Inside clamping 12-26”/305-660mm
  • Max.wheel diameter 41”/1100mm
  • Max.wheel width 16”/420mm
  • Bead Break Force 2500Kgf
  • Operating pressure 8-10bar
  • Noise Less than 70db
  • Net/Cross weight 210 / 230kgs
  • Packing size 1000x800x950mm
