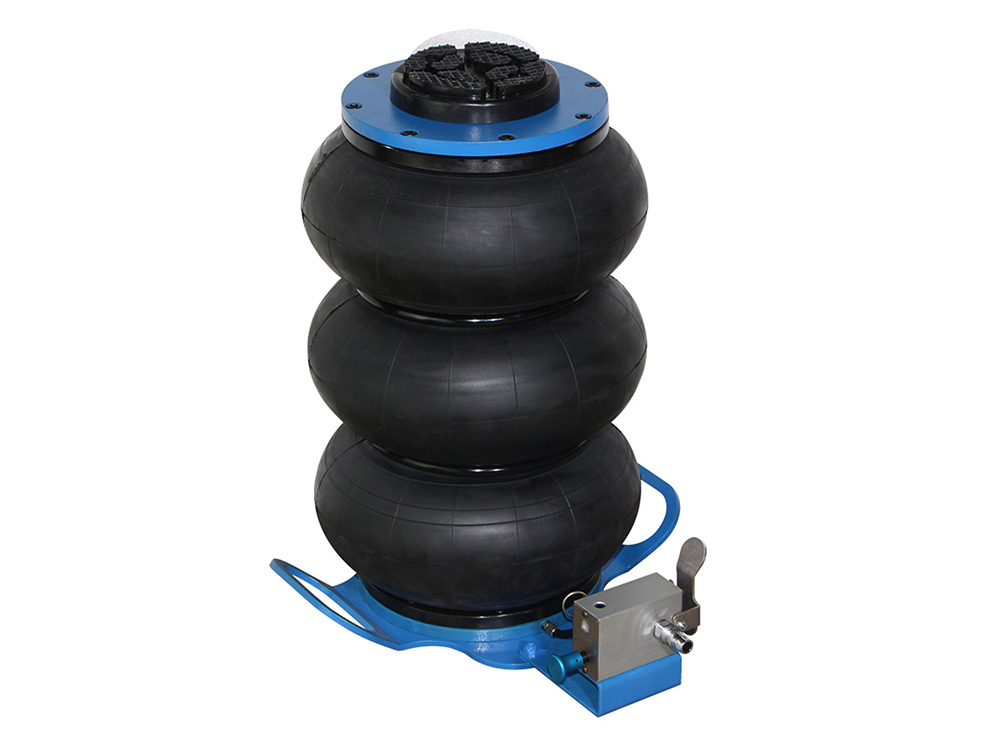

TAB-J302

Portable Model Air Jack

Product Features:

1. Adopt independent research “Negative Pressure” pneumatic valve, only takes 5 Sec to go up and 8 Sec to go down.

2. Adopt integrated molding centered steel bushing, high precision, not need clasp, enable it to move stable and smoothly.

3. Adopt soft plastic pad, enlarged touching area, not damage the chassis.

4. High cost performance, and the life time is more than 5 years.

5. Adopt high tensile strength air bag, able to bear 26 bar destroy pressure, and also good performance at  -30 environment.

6. Maintenance free, completely driven by air, no hydraulic fluid, no leakage or replacement of sealing ring.

7. Promote garage’s image, the successor to traditional hydraulic jack.

8. Wide use scope, not only use in sand ground, snow ground, but also in slope ground.


PRODUCT SPECIFICATIONS

  • Model No. TAB-J302
  • Air Input 5~10bar
  • Air Output <5bar
  • Working Temperature -30℃~70℃
  • Lifting Capacity 2500Kg (5500Lbs)
  • Min. Height 135mm
  • Max. Height 410mm
  • Destroy Pressure 26bar
  • Net Weight 16Kg
  • Gross Weight 17Kg
  • Packing Dimension 400*370*190mm
