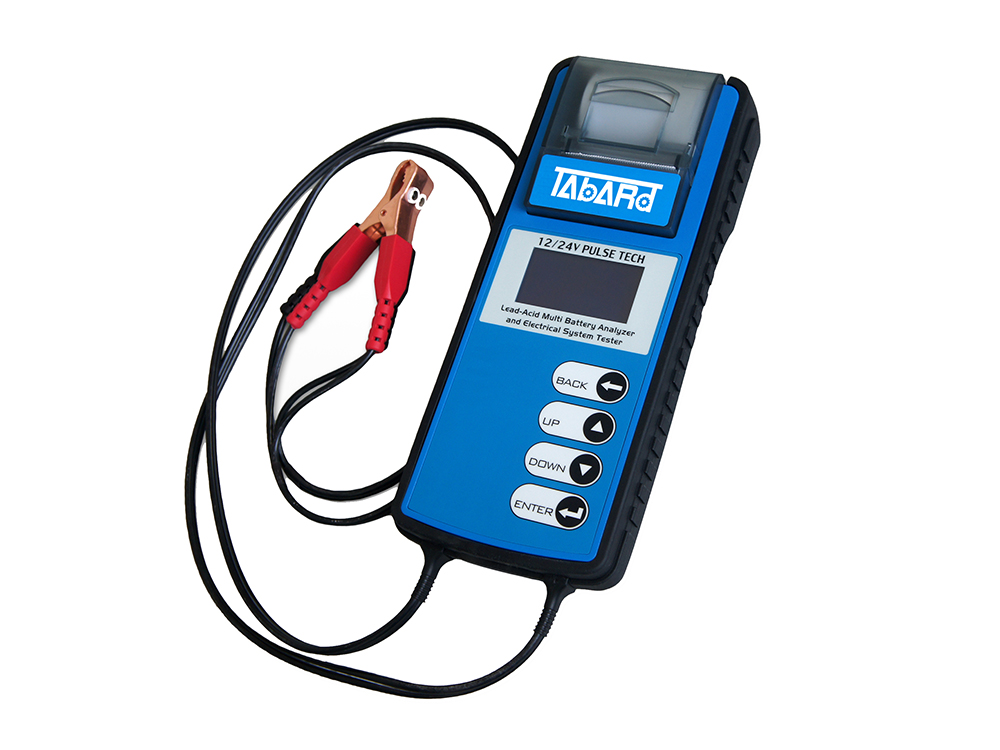

TAB-BT6A

Battery Tester

Product Features:

1. Suitable for 12/24V automotive batteries, including types of ordinary, AGM, GEL.

2. Suitable for batteries of CCA, DIN, IEC, EN, JIS and other unknown standards.

3. It is able to achieve no-load test, Max. starting current test, alternator charging current test, alternator max. output current test.

4. Quickly test the battery’s main specifications: Internal Resistance, CCA, Voltage, Electric quantity, Life-span.

5. Adopt conductance method to test, to protect the battery.

PRODUCT SPECIFICATIONS

  • Model No. TAB-BT6A
  • Voltage Range DC9~30V
  • Environment Temperature 0℃~+40℃
  • Relative Humidity 20%~80%
  • Paper Thermal Paper
  • Language English, Chinese
  • Screen LCD, Resolution 128╳64
  • Pulse Width Range 0~20ms (Step: 0.1ms)
  • Case Material ABS, TPR Rubber Cover
  • Cable PVC, 20AWG/4 Wires, 1100mm
  • Machine Size 122*256*56mm
  • Packing Size 370*277*90mm
  • Net Weight 1.0Kg
  • Gross Weight 2.0Kg
