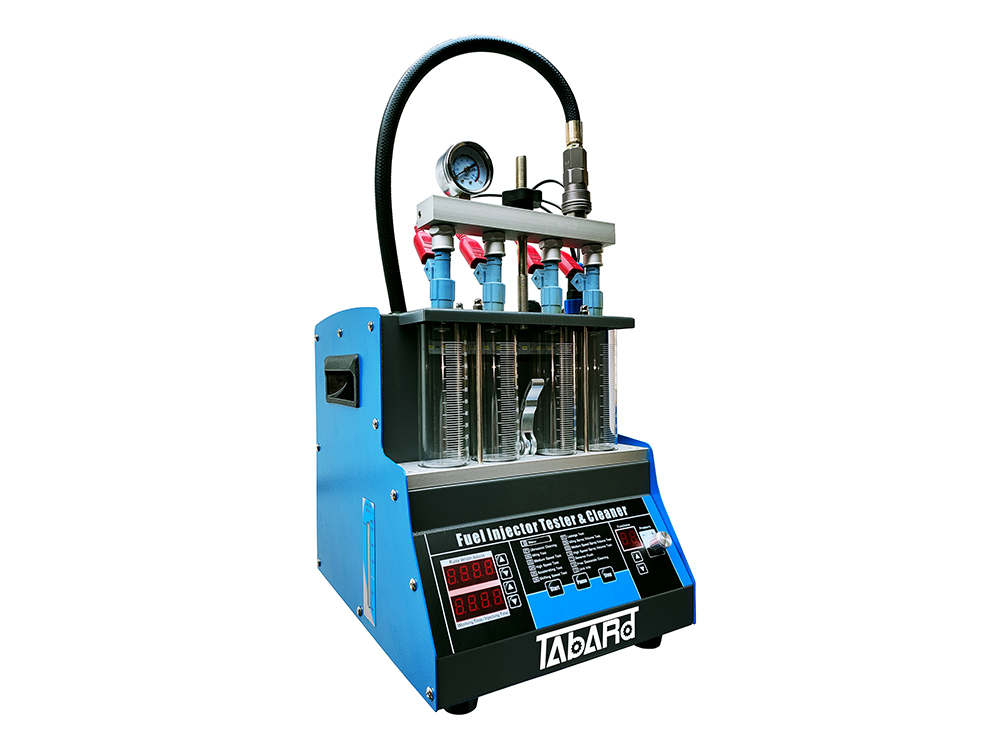

TAB-F6B

Fuel Injector Tester and Cleaner

Product Features:

1. Ultrasonic Cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.

2. Uniformity/Spray Ability Test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.

3. Leakage Test: To test the sealing and dribbling conditions of injectors under system pressure.

4. Injecting Flow Test: To check the injecting amount of the injector in 15 seconds of constant injection.

5. Auto. Test: To test injectors by simulating different working conditions.

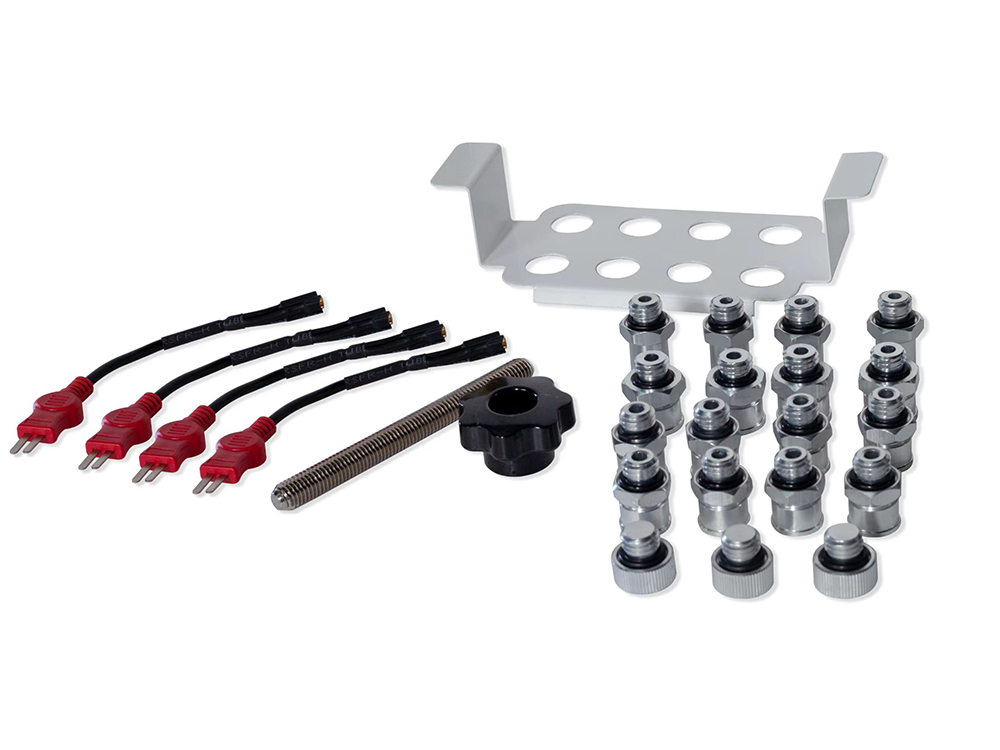

6. Free Dismantle Cleaning: To clean the injectors on vehicle, and it is equipped with various adaptors and couplers which are for optional.

7. Automatic draining: To drain the testing agent from the volumetric cylinders by magnetic valves.

PRODUCT SPECIFICATIONS

  • Model No. TAB-F6B
  • Power Supply AC220V~50/60Hz, 150W
  • Ultrasonic Cleaning Power 60W
  • Simulated RPM Rang 0~7500RPM (Step: 10RPM)
  • Testing Pressure 0~6Bar
  • Injection Range 0~9900 Times (Step: 100Times)
  • Pulse Width Range 0~20ms (Step: 0.1ms)
  • Environment Temperature +10℃~+40℃
  • Relative Humidity <85%
  • Magnetic Field Strength <400A/m
  • Machine Size 315*245*350mm
  • Packing Size 380*305*360mm
  • Net Weight 7.5Kg
  • Gross Weight 8.6Kg
