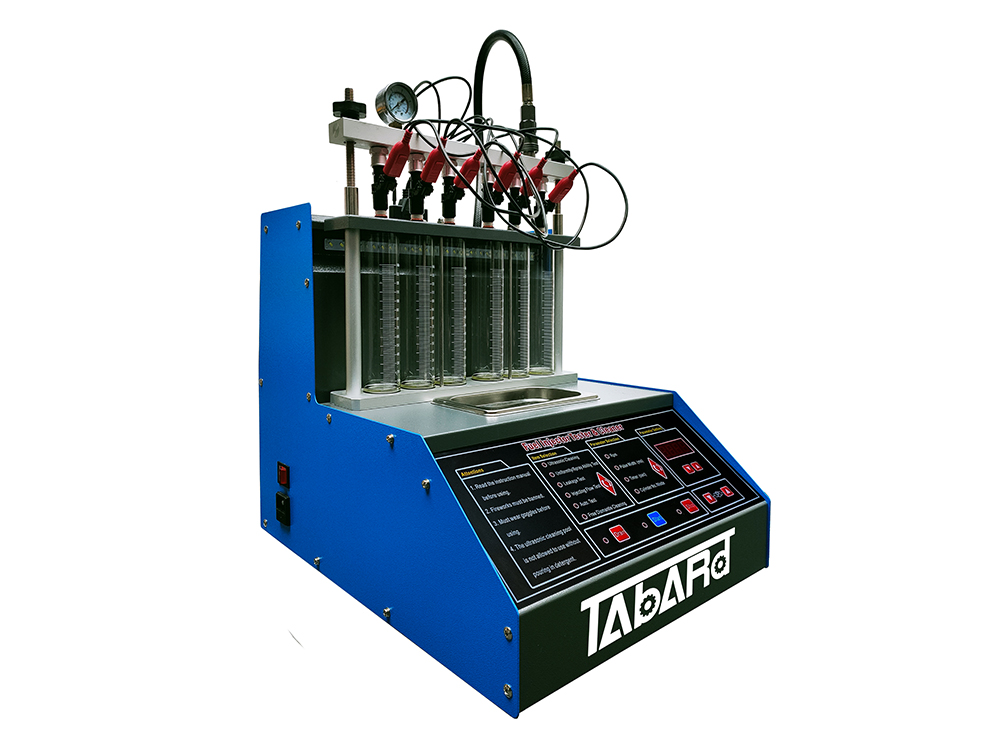

TAB-F6A

Fuel Injector Tester and Cleaner

Product Features:

1. Ultrasonic Cleaning: To perform simultaneous cleaning on several injectors and to remove the carbon deposits on the injector completely.

2. Uniformity/Spray Ability Test: To test the uniformity of injecting amount of each injector, and to monitor the spraying status of each injector with the help of backlight. This test is also for reverse flush.

3. Leakage Test: To test the sealing and dribbling conditions of injectors under system pressure.

4. Injecting Flow Test: To check the injecting amount of the injector in 15 seconds of constant injection.

5. Auto. Test: To test injectors by simulating different working conditions.

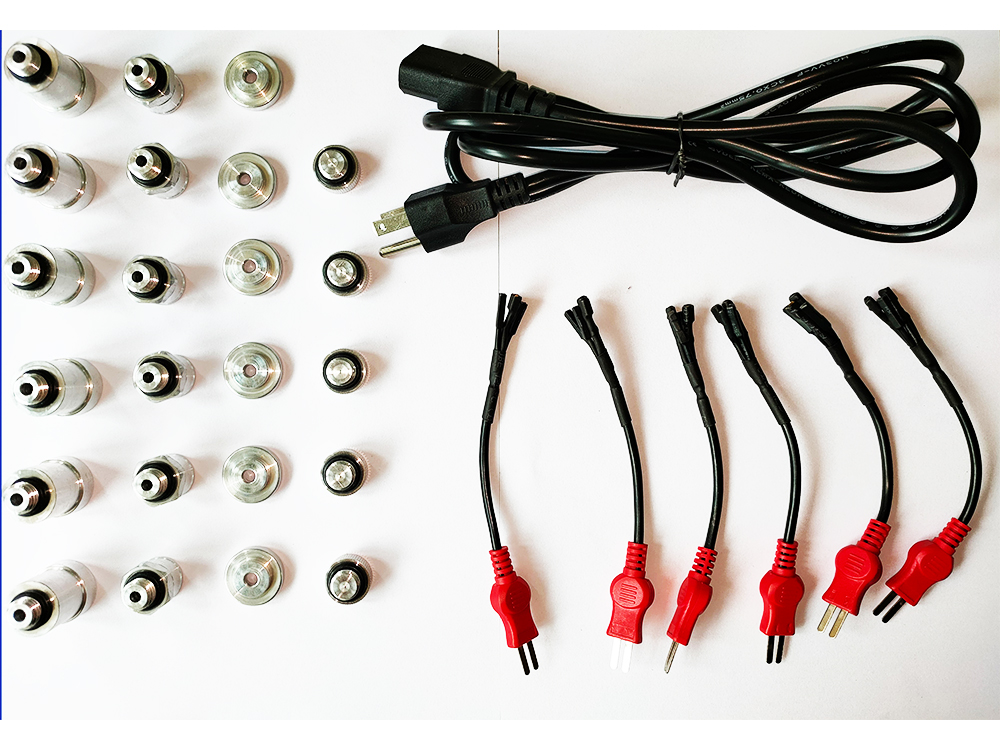

6. Free Dismantle Cleaning: To clean the injectors on vehicle, and it is equipped with various adaptors and couplers which are for optional.

7. Automatic draining: To drain the testing agent from the volumetric cylinders by magnetic valves.

PRODUCT SPECIFICATIONS

  • Model No. TAB-F6A
  • Power Supply AC220V~50/60Hz, 250W
  • Ultrasonic Cleaning Power 100W
  • Simulated RPM Rang 0~9990RPM (Step: 10RPM)
  • Vacuum Pump 5PSI
  • Testing Pressure 0~7Bar
  • Timing Range 1~9999 S
  • Pulse Width Range 0.5~25ms (Step: 0.1ms)
  • Environment Temperature +10℃~+40℃
  • Relative Humidity <85%
  • Magnetic Field Strength <400A/m
  • Machine Size 480*390*450mm
  • Packing Size 550*460*490mm
  • Net Weight 20Kg
  • Gross Weight 23Kg
