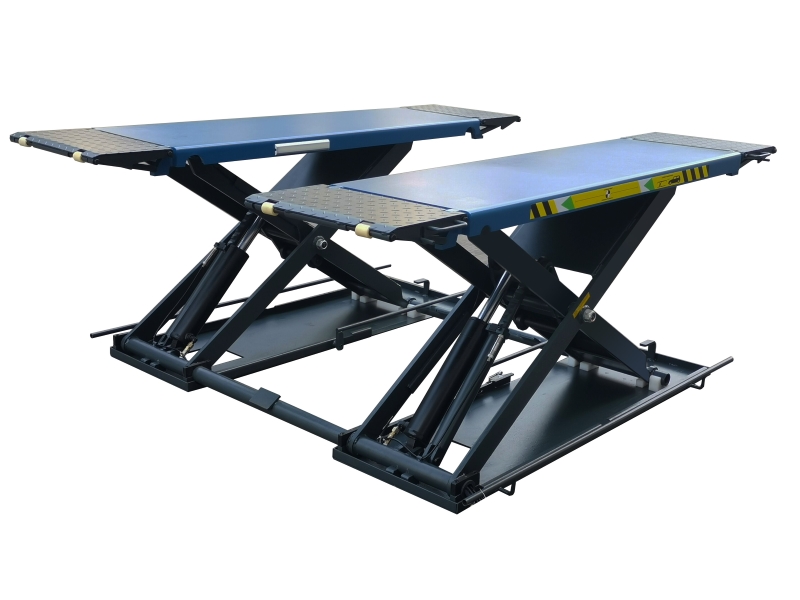

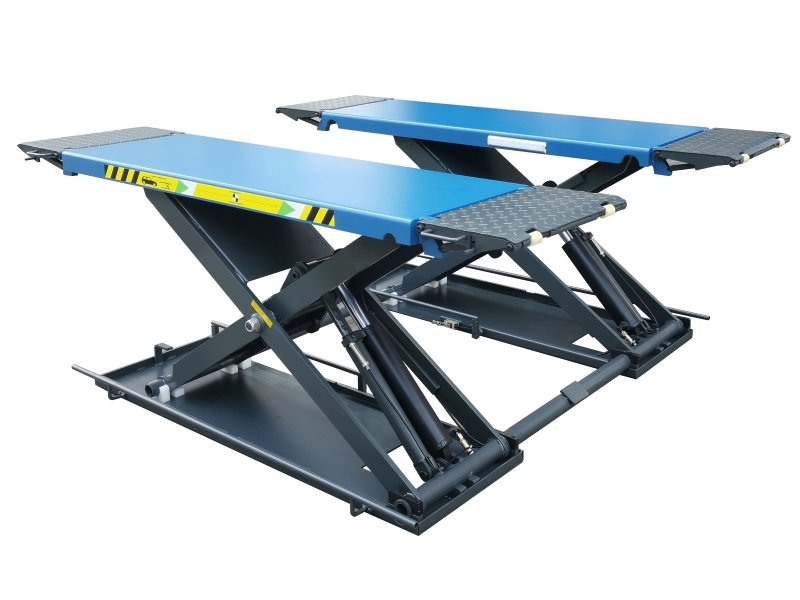

TAB-MS09T (4.0T)

Electric safety release, 1200mm lifting height, portable mid-rise scissor lift.

Features

  • CE approval.

  • 4,000Kg lifting capacity.

  • Portable design and the lift can be moved easily.

  • Durable cylinders with anti-surge valves.

  • Electric safety lock release system.

  • 24V low voltage electrical control system with control cabinet.

  • Self-lubricated bushing and bearing.

  • Standard with height limit switch.

  • Standard with mobile kit makes the lift move in the garage easily.

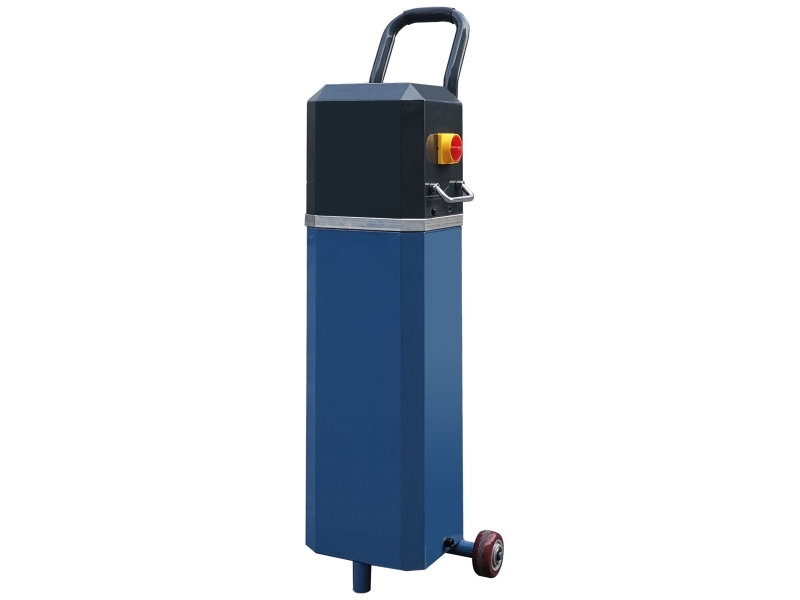

  • Standard with aluminum motor power unit.

  • Standard with power arm to start the lift easier.

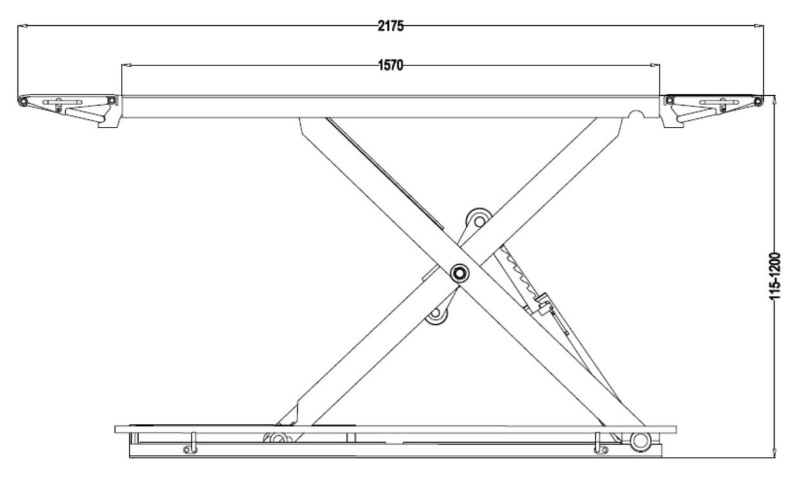

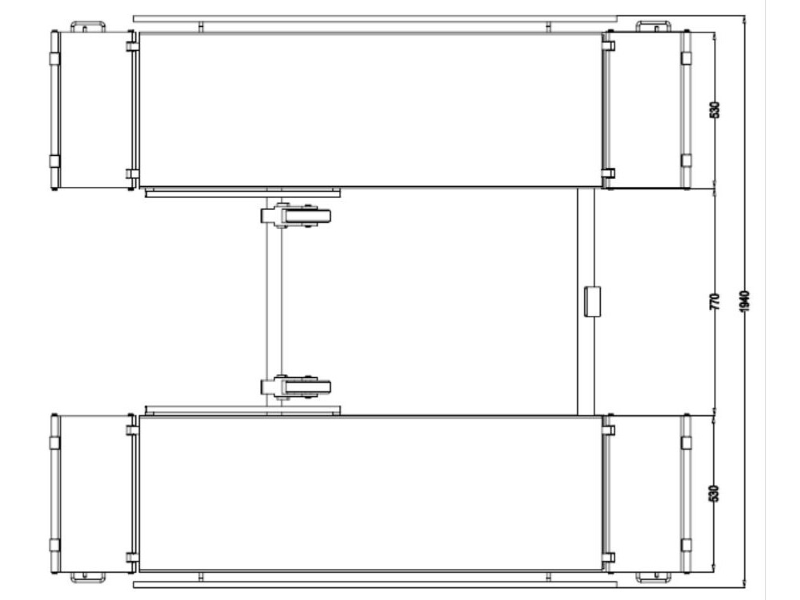

    6010C尺寸图16010C尺寸图2


PRODUCT SPECIFICATIONS

  • Model No. TAB-MS09T
  • Lifting capacity 4,000kg
  • Lifting height 1200mm
  • Lifting time ≤50 S
  • Platform length 2175mm
  • Platform width 530mm
  • Minimum height 115mm
  • Motor power 2.2KW
  • Gross weight 630kgs
  • Package 1 dimension 1800x1580x150mm
  • Package 2 dimension 880x460x370mm
