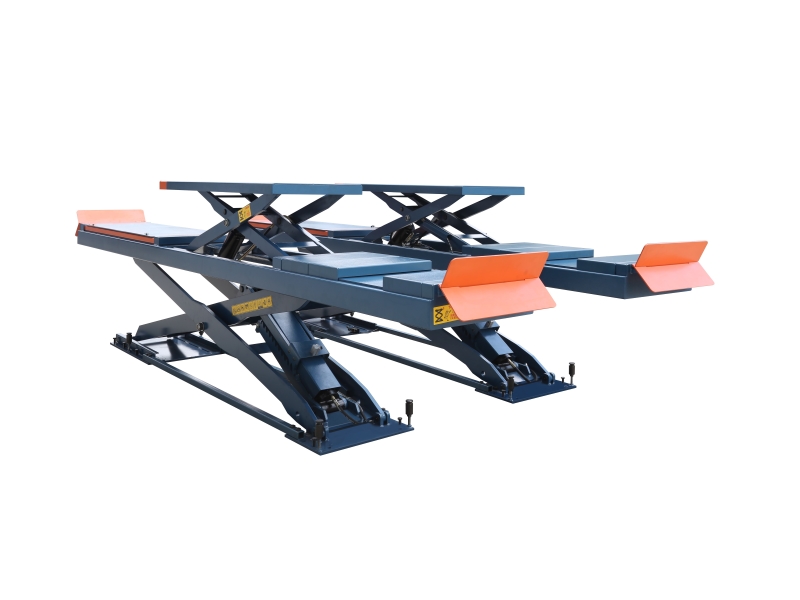

TAB-DX11F (5.0T)

CE Approval, flush-mount alignment scissor lift

Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants

Features

  • CE Approval with 24V voltage operation.

  • Dual synchronous cylinders are applied to assure the lifting level on both runways.

  • Electro-air control system, mechanical safety locks.

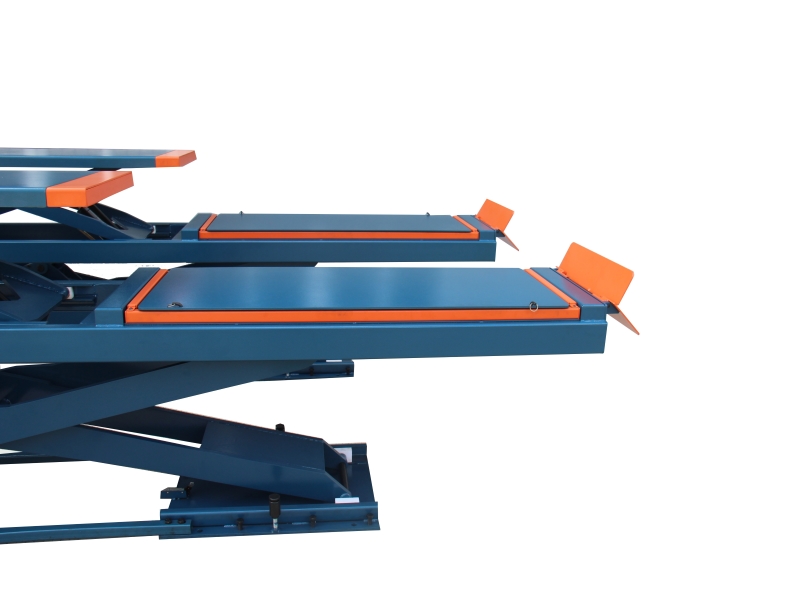

  • Integrated rear slip-plates.

  • Heavy duty design,the X serial scissors lifts use large steel tube to make it strong and assure the runways remain level during working.

  • Optional Turnplate.

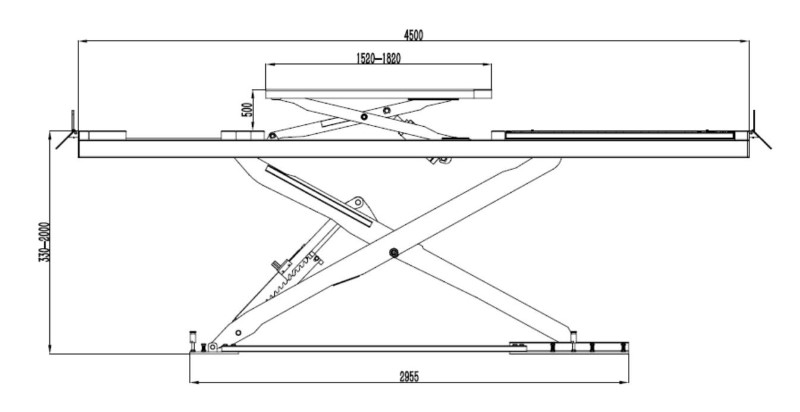

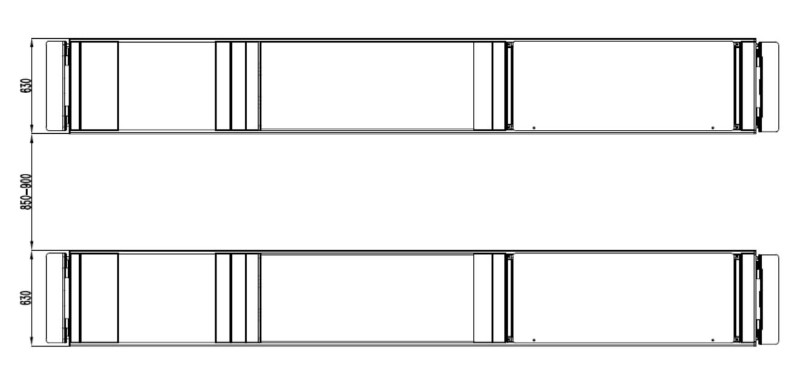

6108A尺寸图16108A尺寸图2

PRODUCT SPECIFICATIONS

  • Model No. TAB-DX11F
  • Lifting capacity 5,000kg
  • Lifting height 2000mm
  • Lifting time ≤50 S
  • Runway length 4500mm
  • Runway width 630mm
  • Minimum height 330mm
  • Motor power 2.2KW
  • Gross weight 2400kgs
  • Package 1 dimension 4650x640x345mm
  • Package 2 dimension 4650x640x345mm
  • Package 3 dimension 395x520x1130mm
  • Package 4 dimension 330x235x220mm
