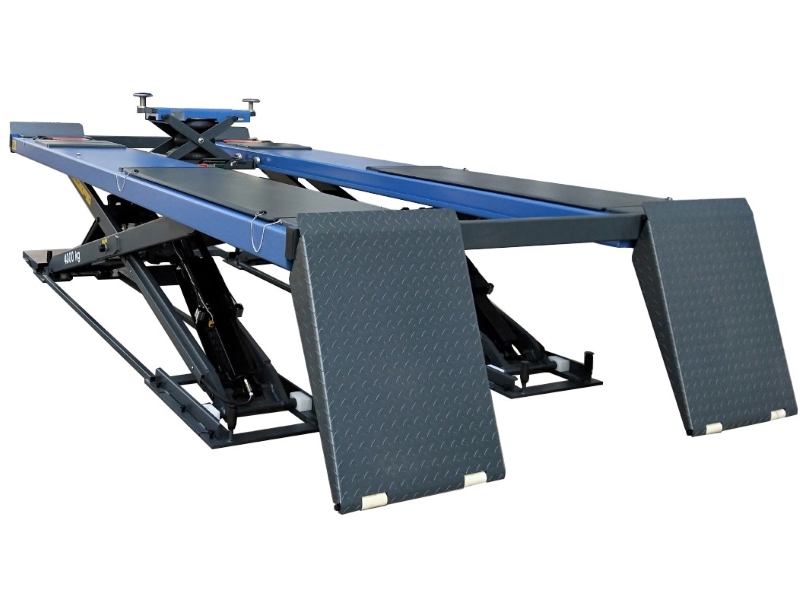

TAB-LX09P (4.0T)

CE Approval, ultra-thin alignment lift with jack

Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants

Features

  • CE Approval with 24V voltage operation.

  • Dual synchronous cylinders are applied to assure the lifting level on both runways.

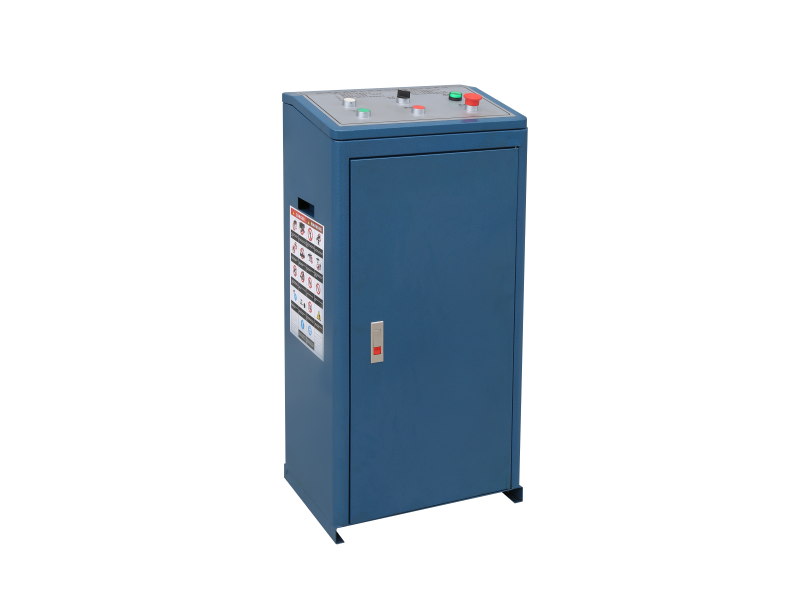

  • Electro-air control system, mechanical safety locks.

  • Integrated rear slip-plates.

  • Heavy duty design,the X serial scissors lifts use large steel tube to make it strong and assure the runways remain level during working.

  • Optional Jack and Turnplate.

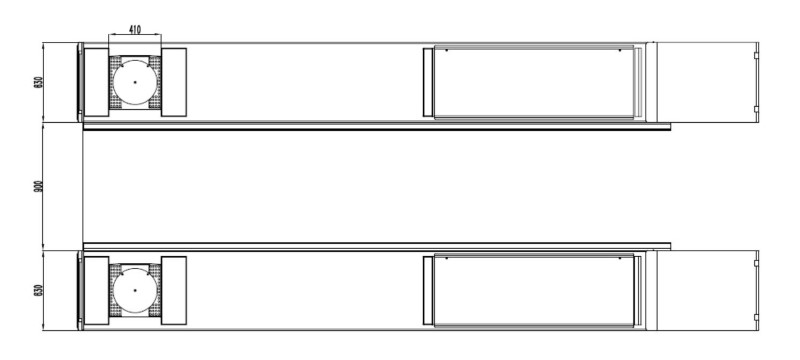

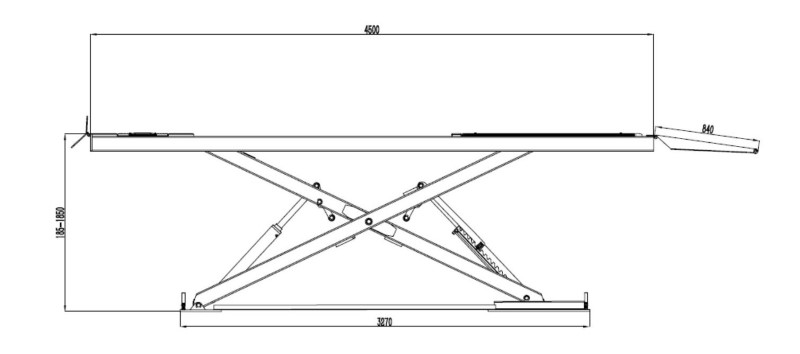

6108C尺寸图16108C尺寸图2

PRODUCT SPECIFICATIONS

  • Model No. TAB-LX09P
  • Lifting capacity 4,000kg
  • Lifting height 1850mm
  • Lifting time ≤50 S
  • Runway length 4500mm
  • Runway width 630mm
  • Minimum height 185mm
  • Motor power 2.2KW
  • Gross weight 2140kgs
  • Package 1 dimension 4650x670x315mm
  • Package 2 dimension 4650x670x315mm
  • Package 3 dimension 395x520x1130mm
  • Package 4 dimension 330x235x220mm
  • Package 5 dimension 950x650x200mm
  • Package 6 dimension 550x500x100mm
  • Package 7 dimension 250x100x100mm
  • Package 8 dimension 150x150x2200mm
