TAB-F9S/TAB-F10S (4.0T/4.5T)

One side manual release

Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants

Features

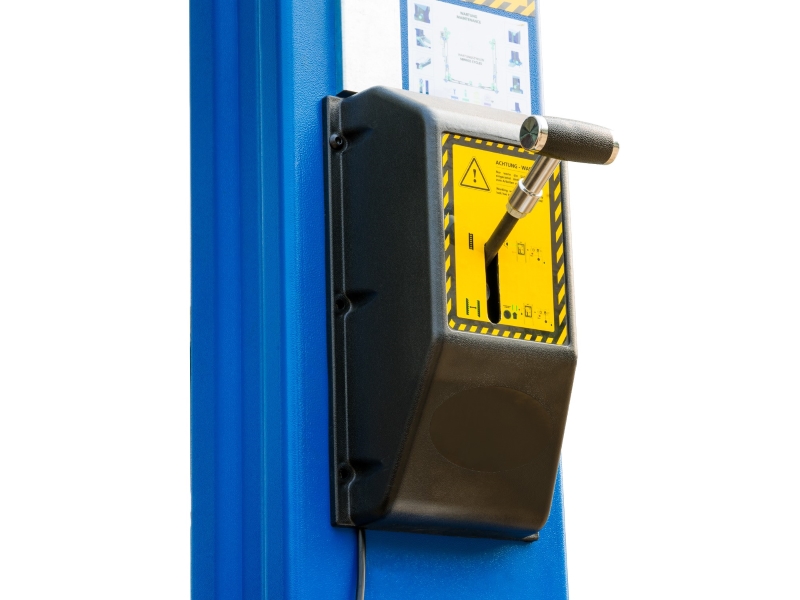

  • Single-point lock release by manual.

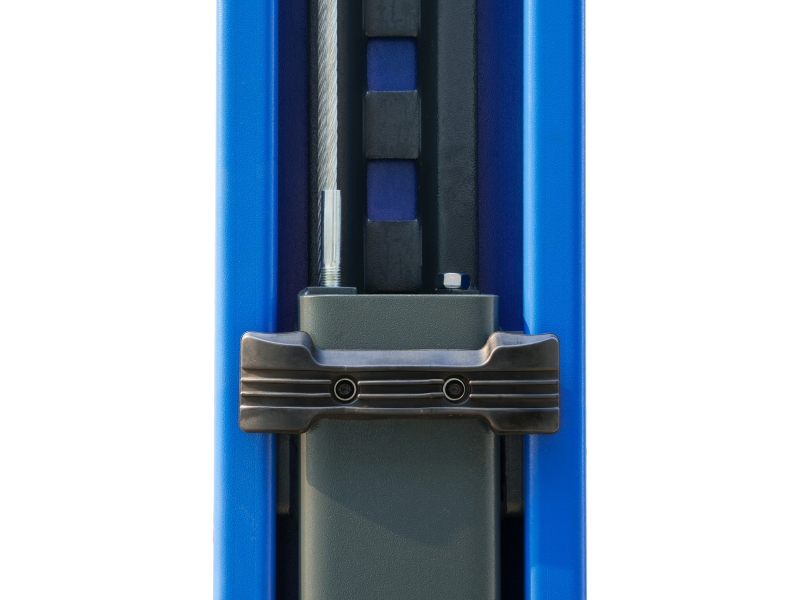

  • Durable chain drive cylinder in each column carries with anti-surge valves.

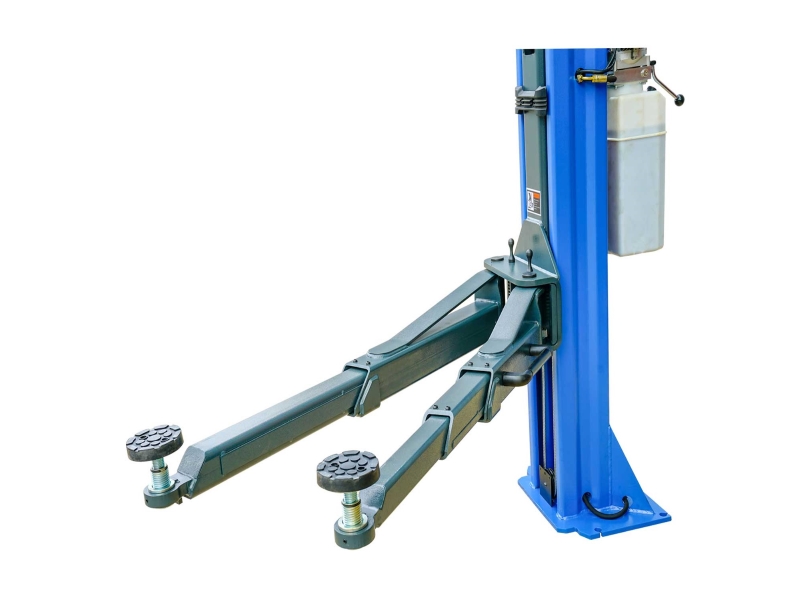

  • Standard with 2 two-stage and 2 three-stage lifting arms.

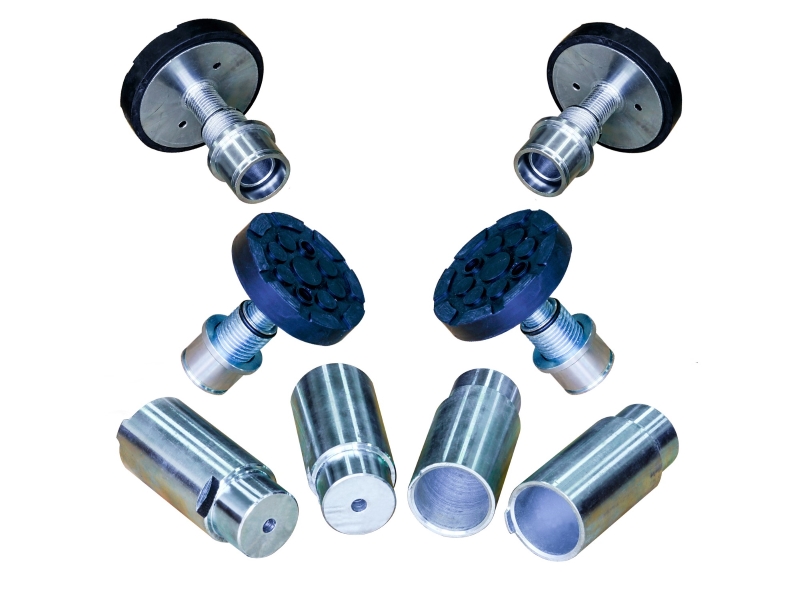

  • Screw-up rubber pads with 100mm extension adapter.

  • Standard with high limit switch.

  • Standard with curtain inside column and foot guard.

  • 1990mm lifting height suitable for various operators.

  • Automatic arms restraints.

  • Professional powder coating.

  • Optional 24V voltage operation for CE approval.

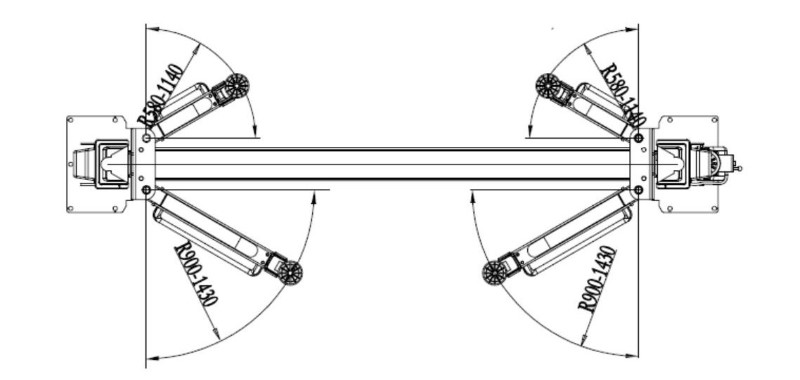

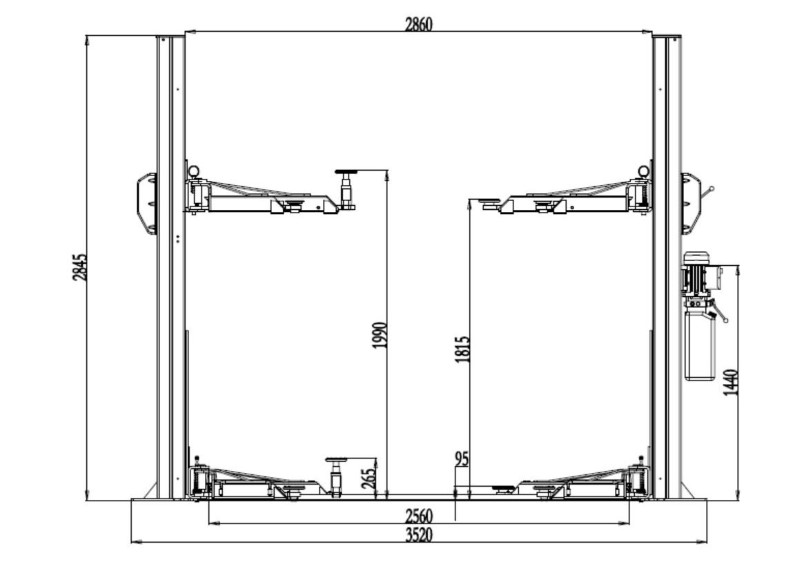

    QYF-9S-10S尺寸图1QYF-9S-10S尺寸图2


PRODUCT SPECIFICATIONS

  • Model No. TAB-F9S/TAB-F10S
  • Lifting capacity 4,000kg/4,500kg
  • Max Lifting height 1990mm
  • Lifting time ≤50 S
  • Overall height 2845mm
  • Overall width 3520mm
  • Width between columns 2860mm
  • Drive through 2560mm
  • Minimum pad height 95mm
  • Motor power 2.2KW
  • Gross weight 610kgs/625kgs
  • Packing dimension 2950x520x1050mm
  • QTY of container 40 Units/40'FT
