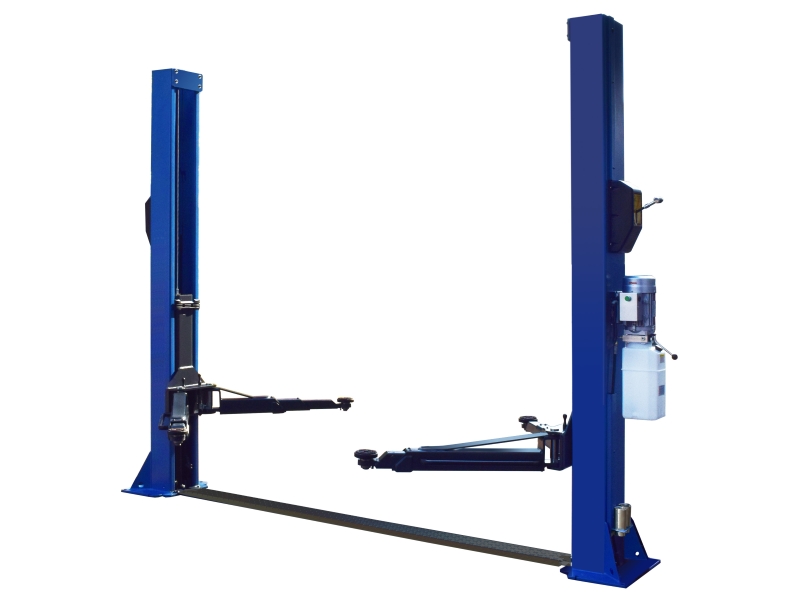

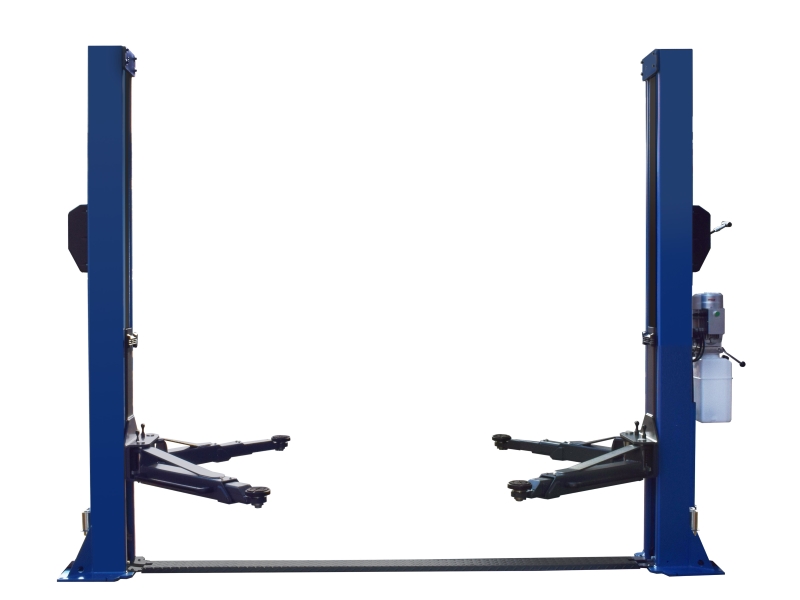

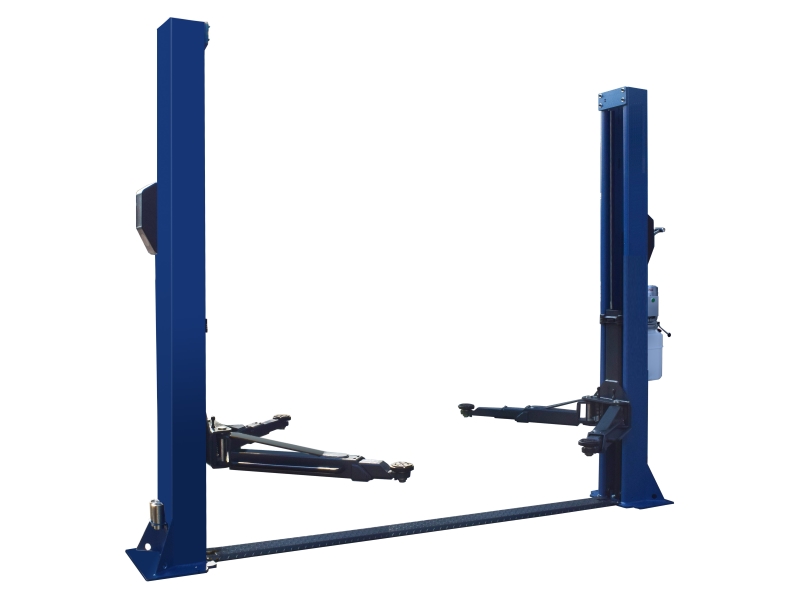

TAB-F9/TAB-F10 (4.0T/4.5T)

One side manual release, compact line 2 post lift

Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants

Features

  • Single-point lock release by manual.

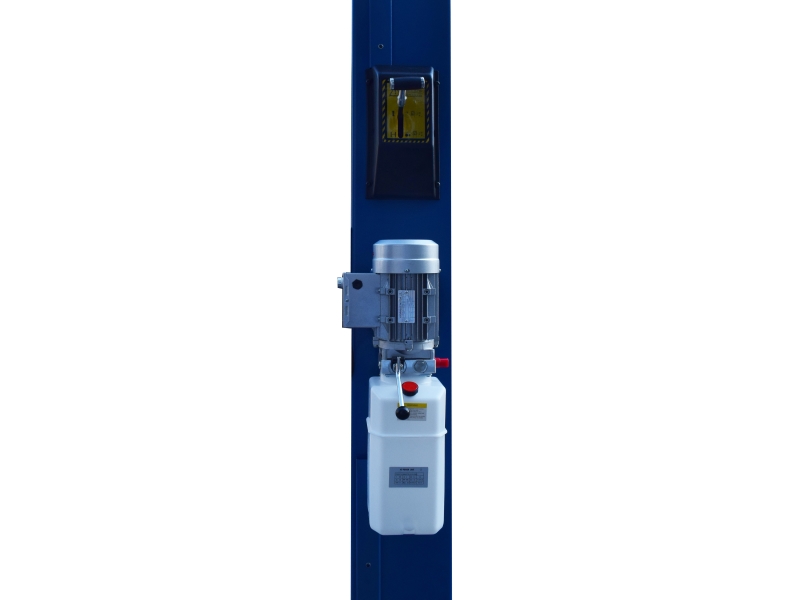

  • Durable chain drive cylinder in each column carries with anti-surge valves.

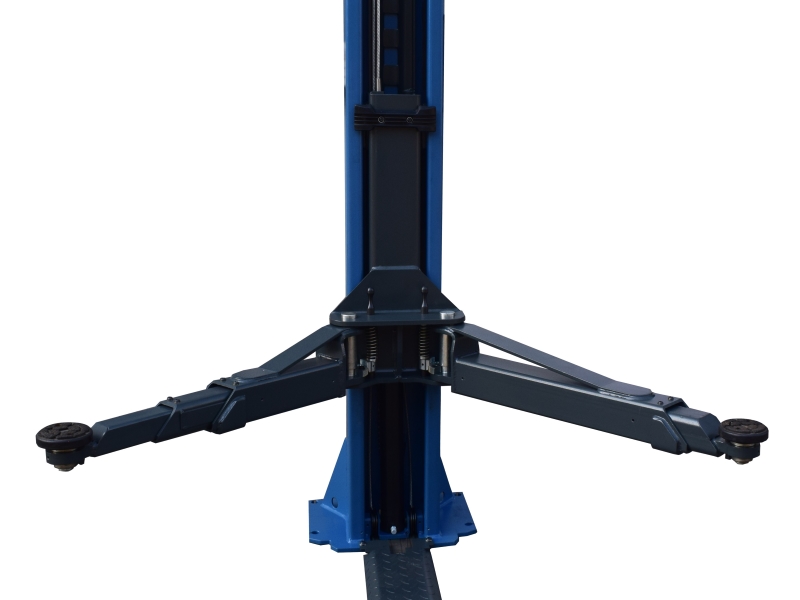

  • Standard with 2 two-stage and 2 three-stage lifting arms.

  • Screw-up rubber pads with 100mm extension adapter.

  • Standard with high limit switch.

  • Standard with curtain inside column and foot guard.

  • 1900mm lifting height suitable for various operators.

  • Automatic arms restraints.

  • Professional powder coating.

  • Optional 24V voltage operation for CE approval.

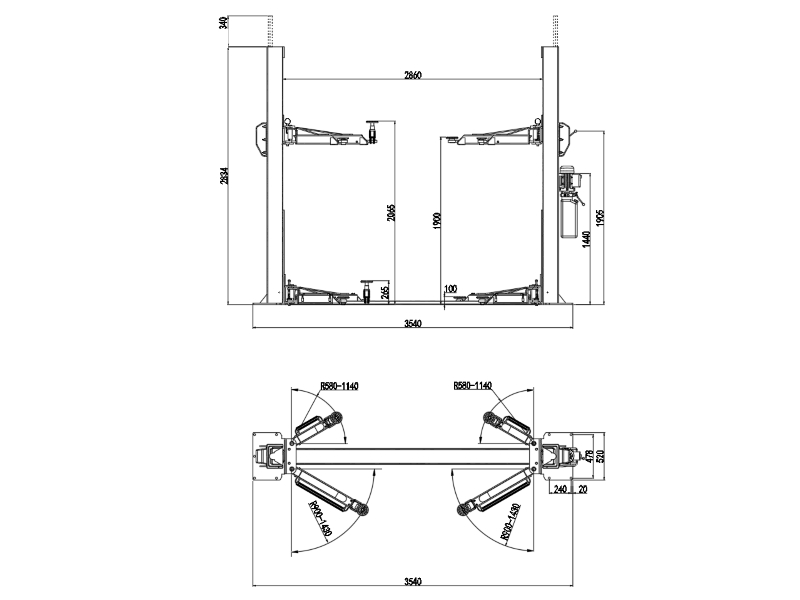

F9-F10尺寸图


PRODUCT SPECIFICATIONS

  • Model No. TAB-F9/TAB-F10
  • Lifting capacity 4,000kg/4,500kg
  • Max Lifting height 1900mm
  • Lifting time ≤50 S
  • Overall height 2834mm
  • Overall width 3540mm
  • Width between columns 2860mm
  • Drive through 2560mm
  • Minimum pad height 100mm
  • Motor power 2.2KW
  • Gross weight 610kgs/625kgs
  • Packing dimension 2950x520x1050mm
  • QTY of container 40 Units/40'FT
