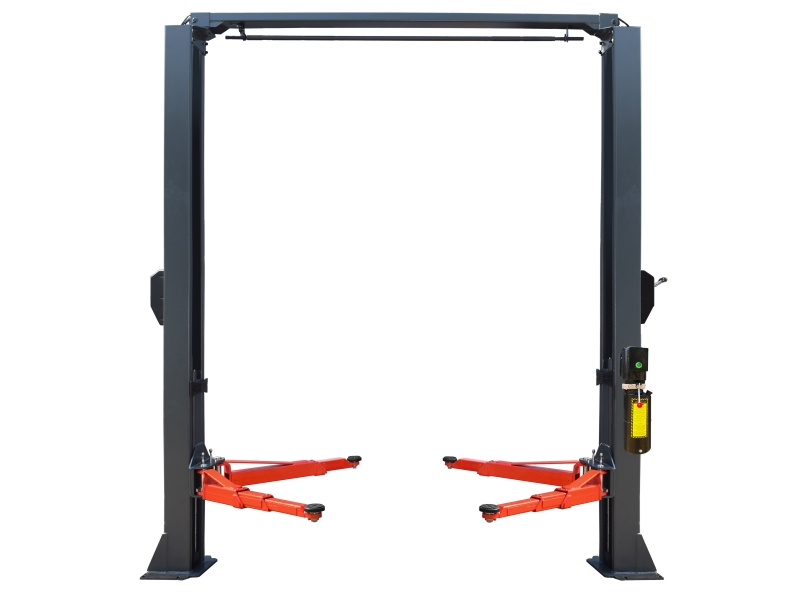

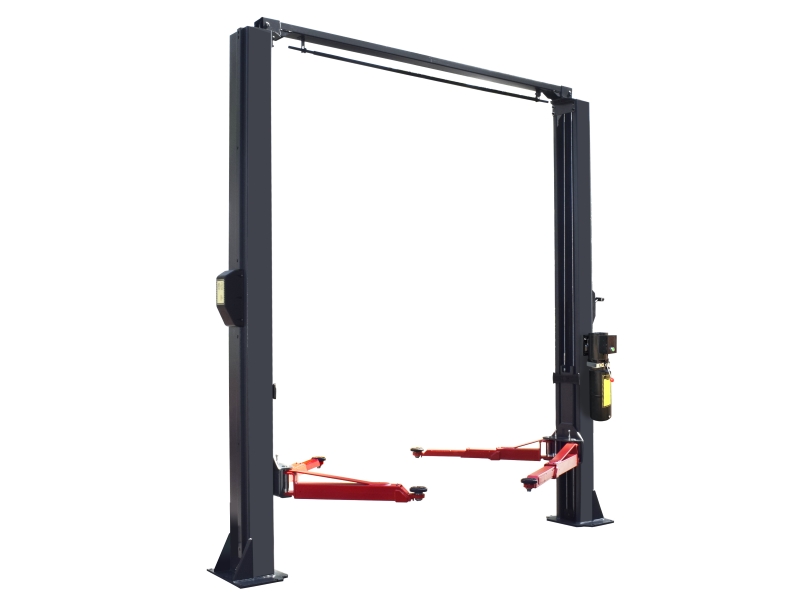

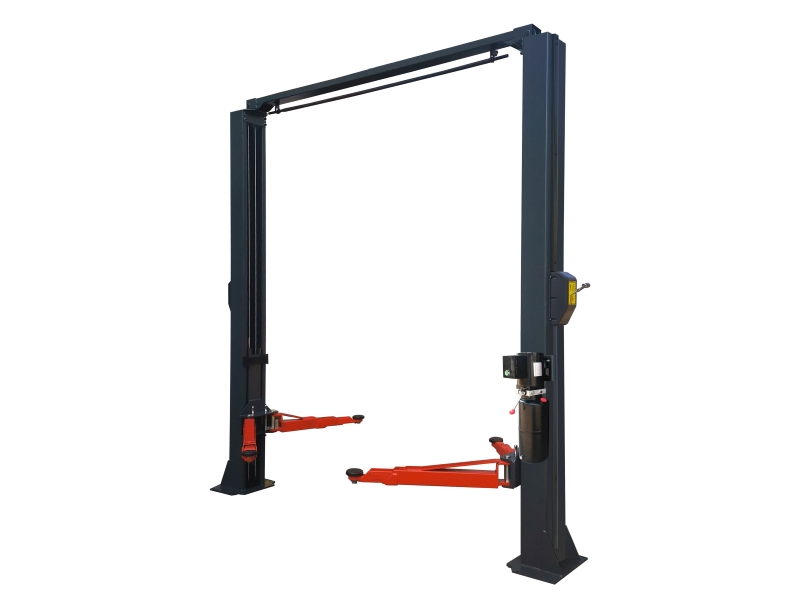

TAB-C9/TAB-C10 (4.0T/4.5T)

Chain drive, one side manual release, compact line 2 post lift

Features

  • Single-point lock release by manual.

  • Dual chain drive cylinders made on high standard.

  • Standard with 2 two-stage and 2 three-stage lifting arms.

  • Screw-up rubber pads with 100mm extension adapter.

  • 1820mm lifting height suitable for various operators.

  • Standard with limit switch.

  • Overhead safety protection device.

  • Automatic arms restraints.

  • Professional powder coating.

  • Can choose extension columns.

  • Optional 24V voltage operation for CE approval.

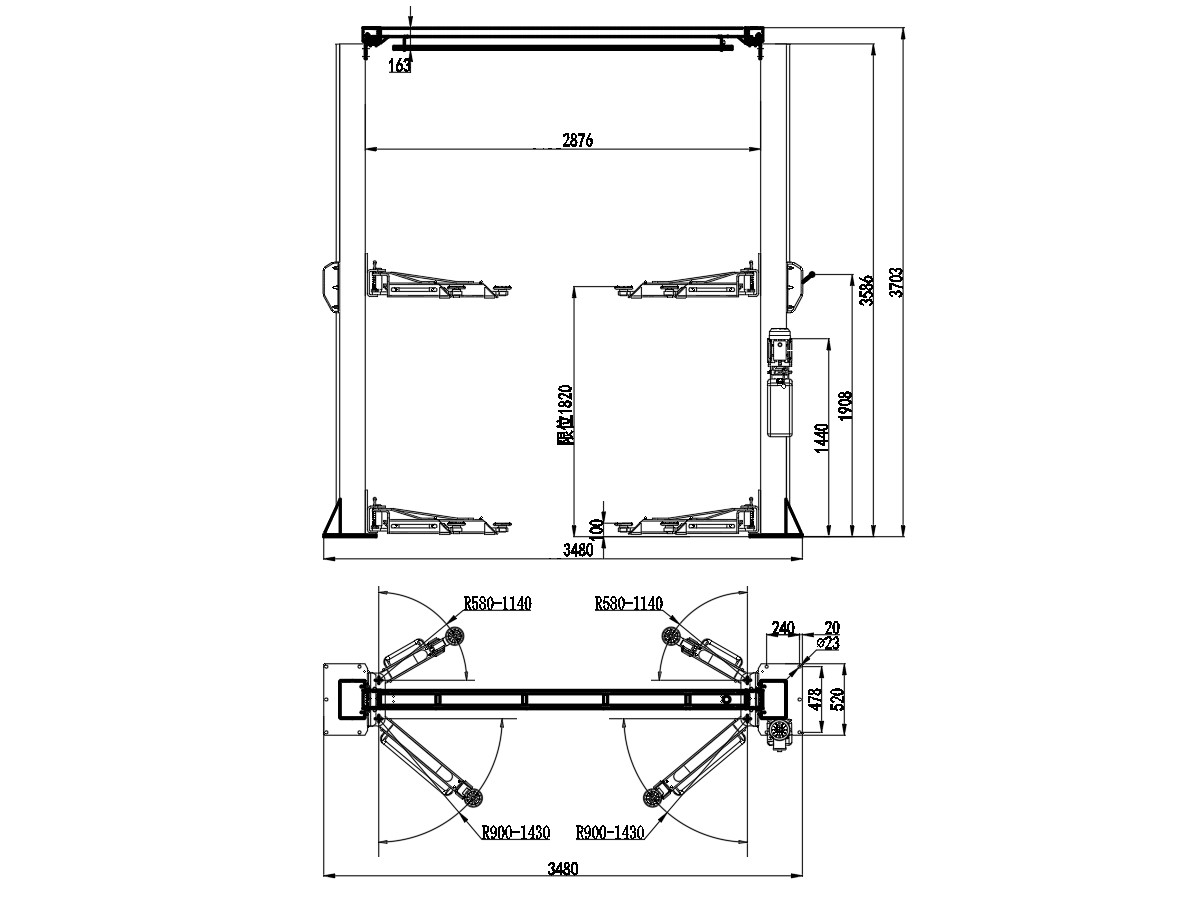

C9-C10尺寸图


PRODUCT SPECIFICATIONS

  • Model No. TAB-C9/TAB-C10
  • Lifting capacity 4,000kg/4,500kg
  • Lifting height 1820mm
  • Lifting time ≤50 S
  • Overall height 3586mm
  • Overall width 3480mm
  • Width between columns 2876mm
  • Drive through 2546mm
  • Minimum pad height 100mm
  • Motor power 2.2KW
  • Gross weight 680kgs/715kgs
  • Packing dimension 2950x520x1050mm
  • QTY of container 40 Units/40'FT
