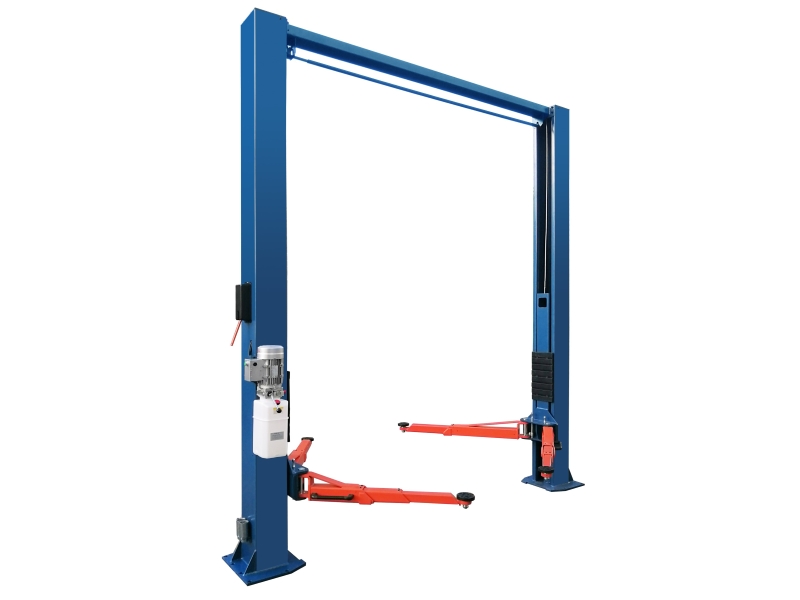

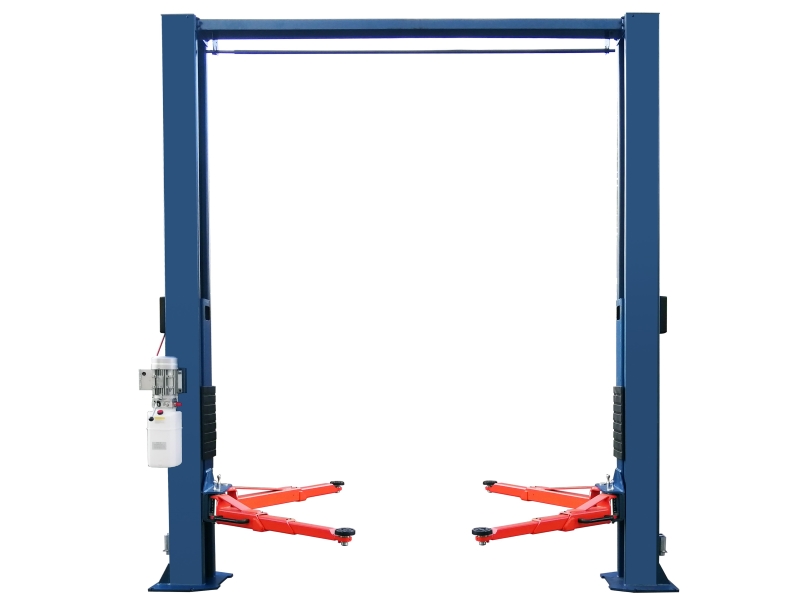

TAB-C10D (4.5T)
Direct drive, one side manual release
Features
Single-point lock release by manual.
Dual direct drive cylinders made on high standard.

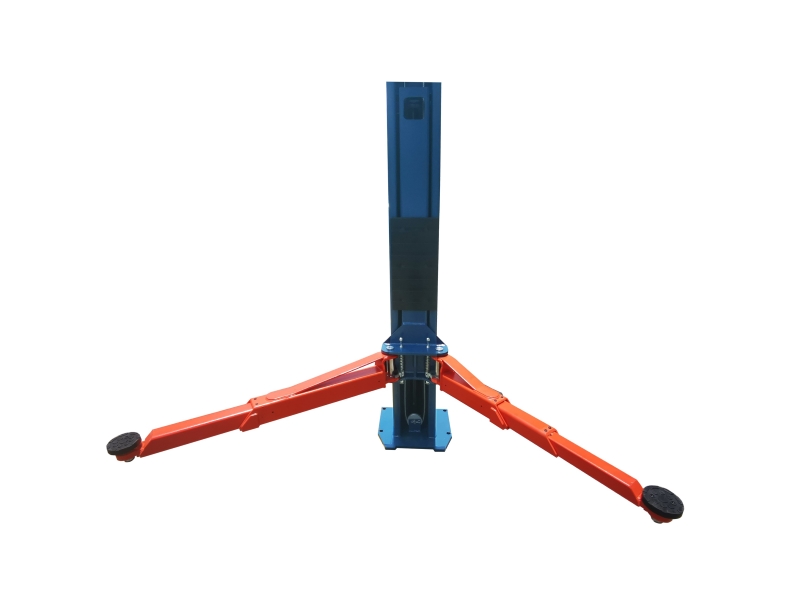

Standard with 2 two-stage and 2 three-stage lifting arms.
Screw-up rubber pads with 100mm extension adapter.
1915mm lifting height suitable for various operators.

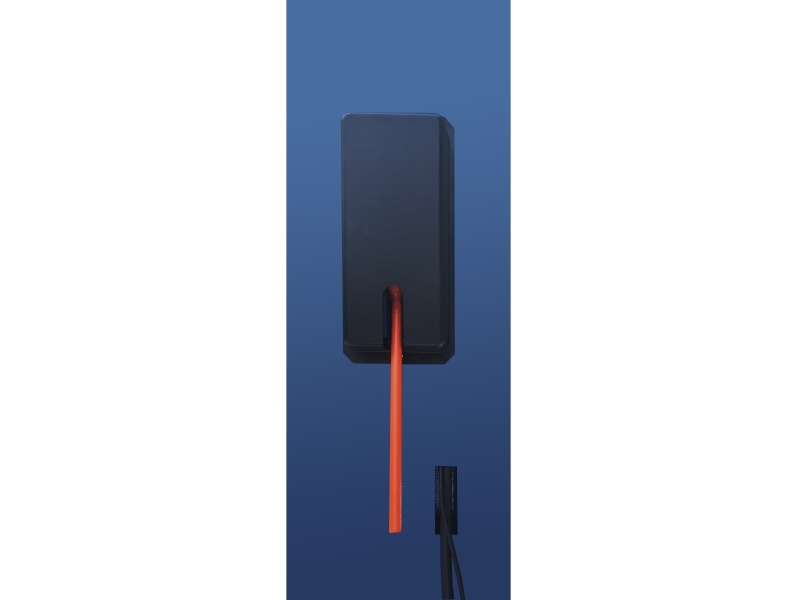

Standard with limit switch and foot guard.
Overhead safety protection device.
Automatic arms restraints.
Professional powder coating.

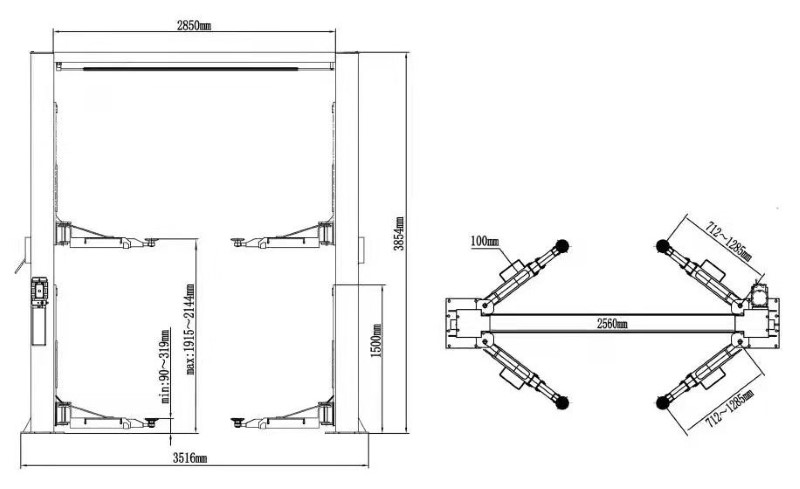

PRODUCT SPECIFICATIONS
- Model No. TAB-C10D
- Lifting capacity 4,500kg
- Lifting height 1915-2144mm
- Lifting time ≤50 S
- Overall height 3854mm
- Overall width 3516mm
- Width between columns 2850mm
- Drive through 2560mm
- Minimum pad height 95mm
- Motor power 2.2KW
- Gross weight 760kgs
- Packing dimension 3920 X 510 X 820mm
- QTY of container 35 Units/40'FT
