TAB-C11SE (5.0T)

Chain drive, electric lock release

Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants

Features

  • Electric lock release with 24V low voltage oeration.

  • Dual chain drive cylinders made on high standard.

  • Standard with 4 three-stage lifting arms.

  • Screw-up rubber pads with 100mm extension adapter.

  • 1950mm lifting height suitable for various operators.

  • Standard with curtain inside column and foot guard.

  • Standard with limit switch.

  • Overhead safety protection device.

  • Automatic arms restraints.

  • Professional powder coating.

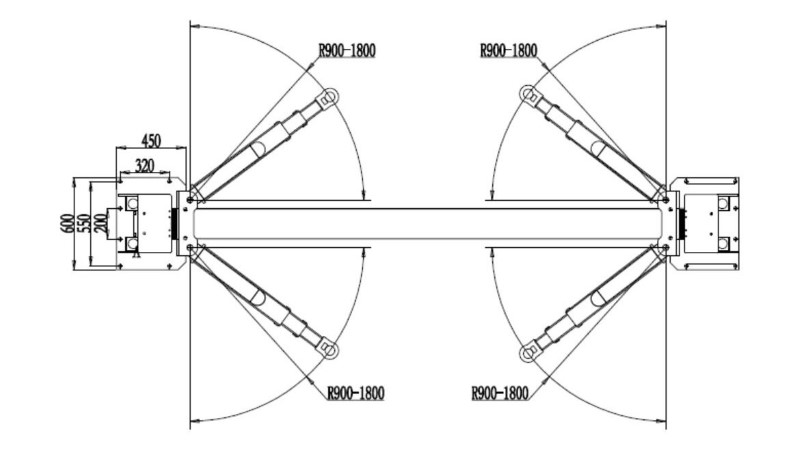

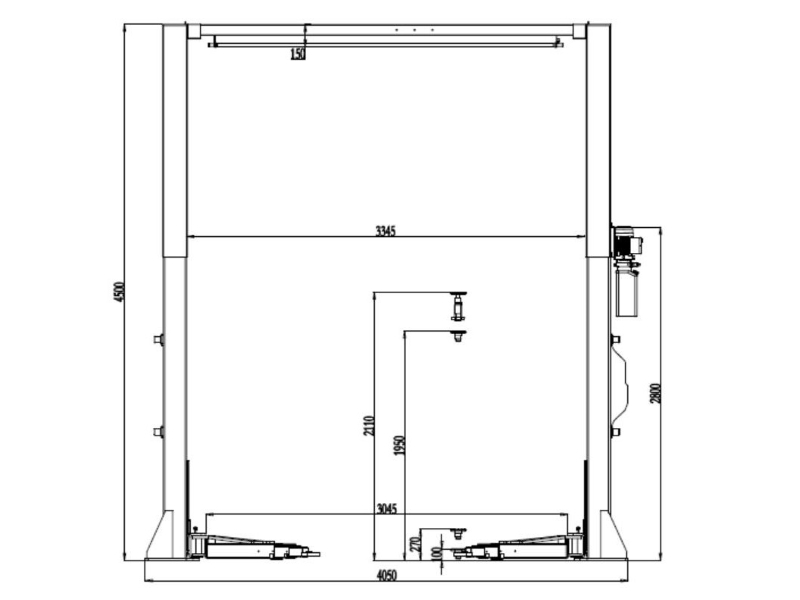

    QYO-11SE尺寸图1QYO-11SE尺寸图2


PRODUCT SPECIFICATIONS

  • Model No. TAB-C11SE
  • Lifting capacity 5,000kg
  • Lifting height 1950mm
  • Lifting time ≤50 S
  • Overall height 4500mm
  • Overall width 4050mm
  • Width between columns 3345mm
  • Drive through 3045mm
  • Minimum pad height 100mm
  • Motor power 2.2KW
  • Gross weight 1005kgs
  • Packing dimension 2950x600x1100mm
  • QTY of container 26 Units/40'FT
