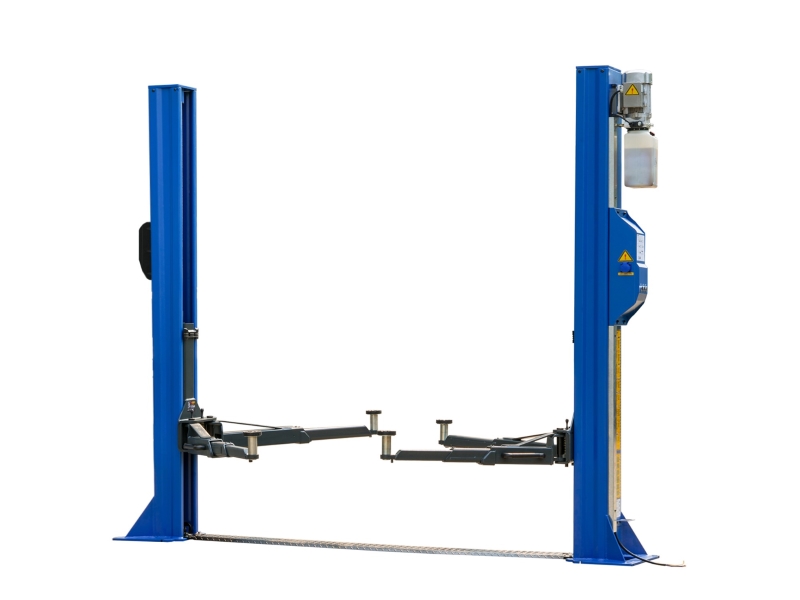

TAB-F11SE (5.0T)

Electric lock release

Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants

Features

  • Electric lock release with 24V low voltage operation.

  • Durable chain drive cylinder in each column carries with anti-surge valves.

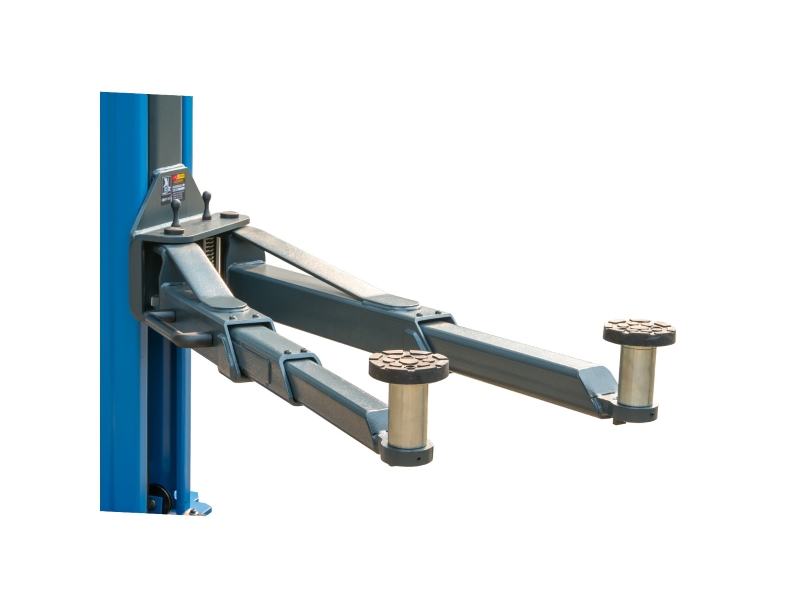

  • Standard with 4 three-stage lifting arms.

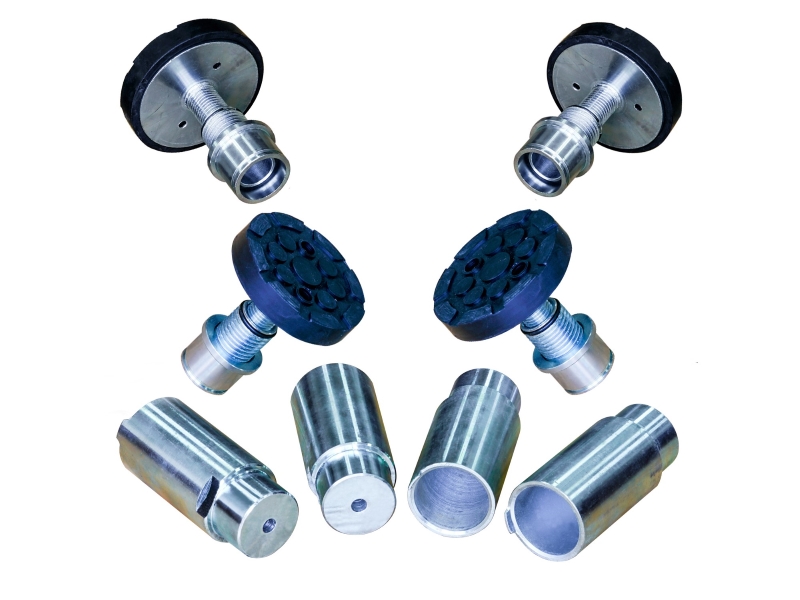

  • Screw-up rubber pads with 100mm extension adapter.

  • Standard with high limit switch.

  • Standard with curtain inside column and foot guard.

  • 1930mm lifting height suitable for various operators.

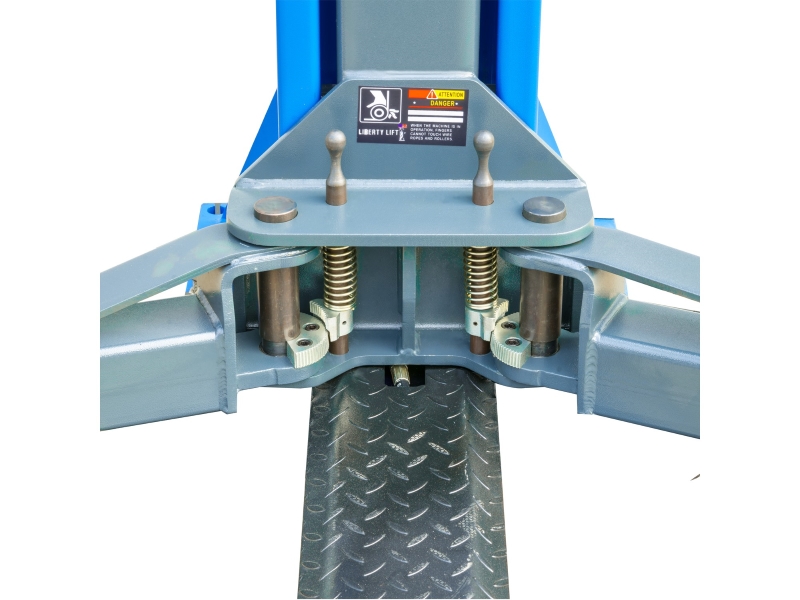

  • Automatic arms restraints.

  • Professional powder coating.

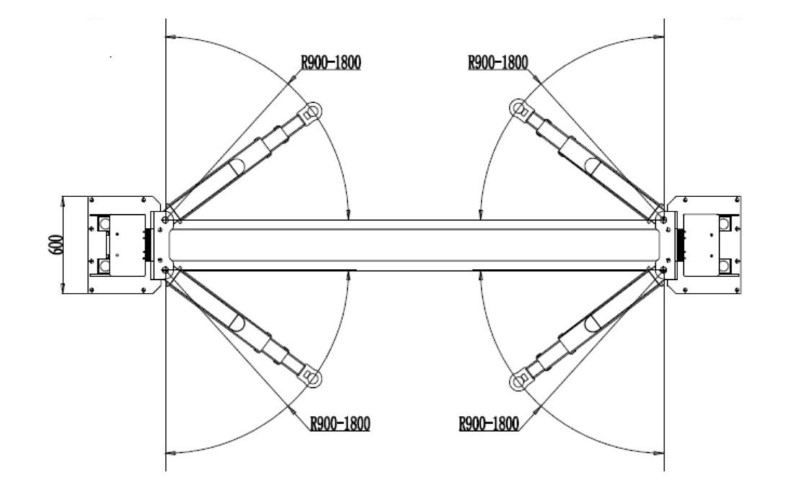

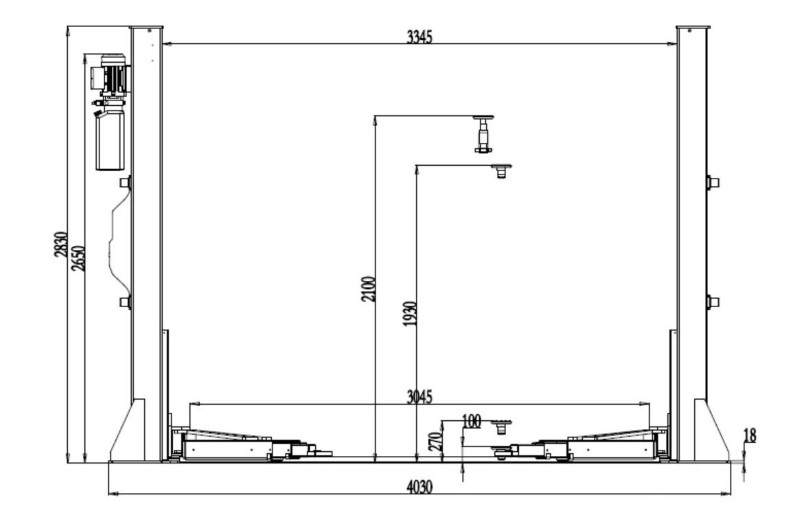

    QYF-11SE尺寸图1QYF-11SE尺寸图2


PRODUCT SPECIFICATIONS

  • Model No. TAB-F11SE
  • Lifting capacity 5,000kg
  • Max Lifting height 1930mm
  • Lifting time ≤50 S
  • Overall height 2830mm
  • Overall width 4030mm
  • Width between columns 3345mm
  • Drive through 3045mm
  • Minimum pad height 100mm
  • Motor power 2.2KW
  • Gross weight 925kgs
  • Packing dimension 2950x600x1100mm
  • QTY of container 30 Units/40'FT
