TAB-C9SE/TAB-C10SE (4.0T/4.5T)

CE Approval, electric lock release

Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants Technogel Equipment for Ice Cream Production Mixworking Plants

Features

  • CE approval.

  • Electric lock release with 24V voltage operation.

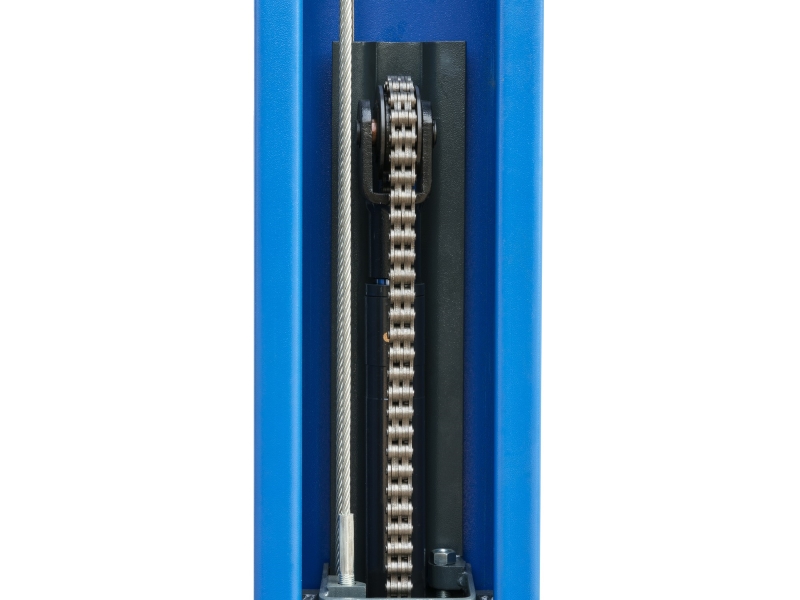

  • Dual chain drive cylinders made on high standard.

  • Standard with 2 two-stage and 2 three-stage lifting arms.

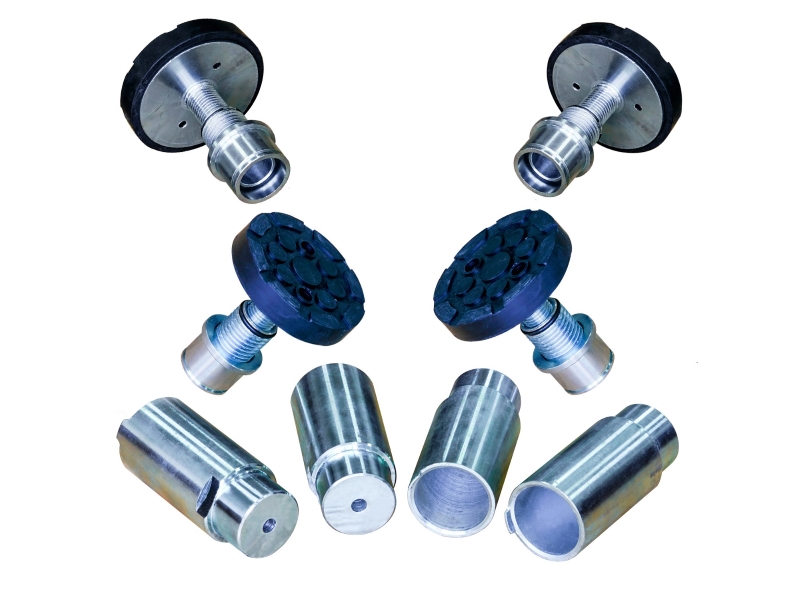

  • Screw-up rubber pads with 100mm extension adapter.

  • 1990mm lifting height suitable for various operators.

  • Standard with curtain inside column and foot guard.

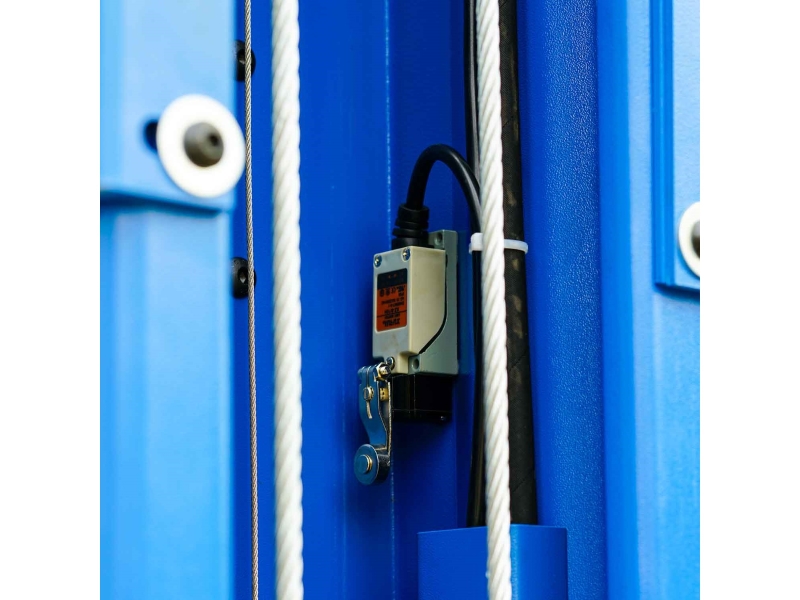

  • Standard with limit switch.

  • Overhead safety protection device.

  • Automatic arms restraints.

  • Professional powder coating.

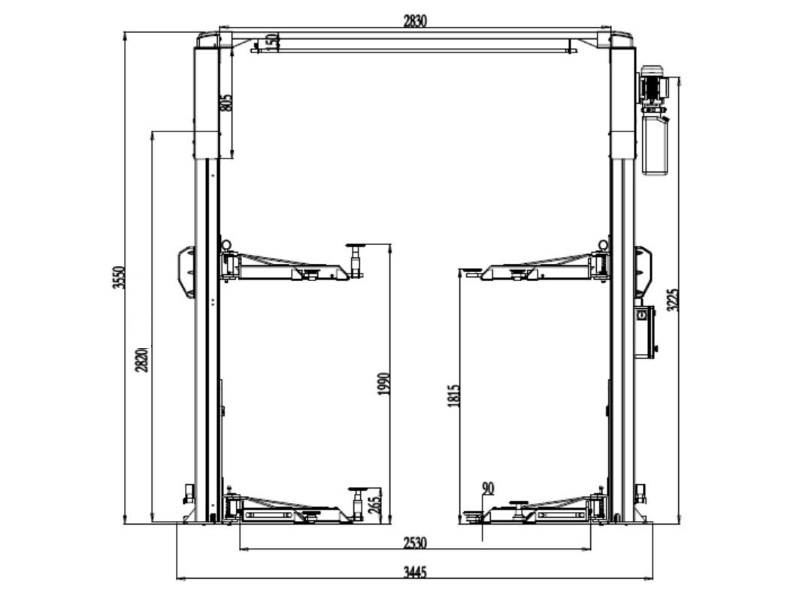

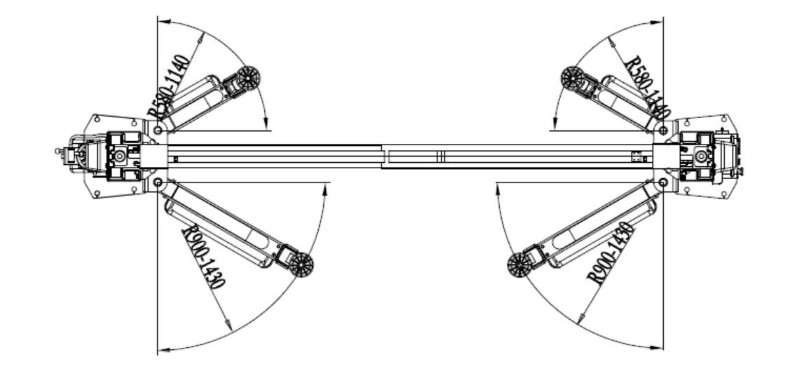

    QYO-9SE-10SE尺寸图1QYO-9SE-10SE尺寸图2


PRODUCT SPECIFICATIONS

  • Model No. TAB-C9SE/TAB-C10SE
  • Lifting capacity 4,000kg/4,500kg
  • Lifting height 1990mm
  • Lifting time ≤50 S
  • Overall height 3550mm
  • Overall width 3445mm
  • Width between columns 2830mm
  • Drive through 2530mm
  • Minimum pad height 95mm
  • Motor power 2.2KW
  • Gross weight 685kgs/720kgs
  • Packing dimension 2950x520x1050mm
  • QTY of container 40 Units/40'FT
